02 Recessed Spots Fixed LED > The Trimless 3W Range Aluminium
10103BTR/BS/W

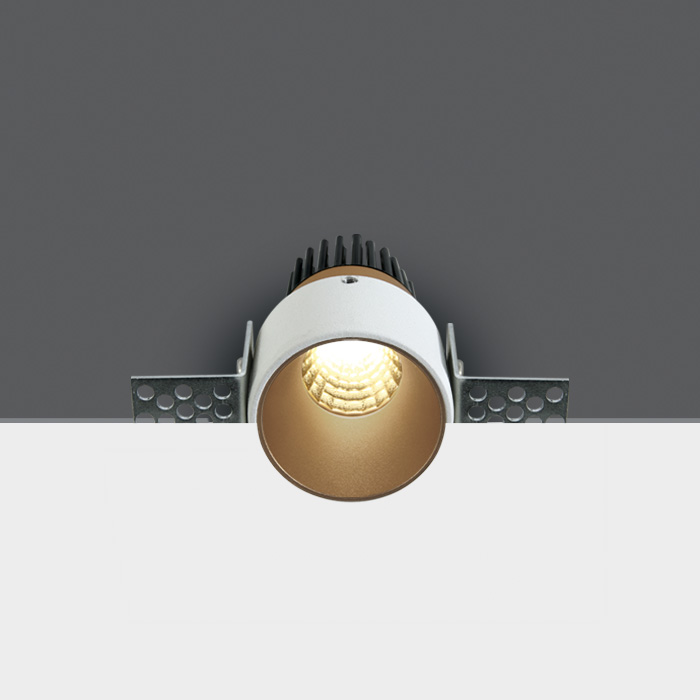

3W Recessed Trimless Dark Light LED spot with white ring and brass reflector, IP20.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Trimless 3W Range Aluminium
Order Code
10103BTR/BS/W
Colour
Brass Reflector
Material
Aluminium
Shape
Circular
Height
61mm
Diameter
35mm
Cutout Hole Diameter
40mm
Recessed trimmless ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Luminus
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
240lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
5,5cm
Box Width
5,5cm
Box Height
7cm
Box Weight
0.130kg
Pcs/Carton
100
Barcode
5291889058373
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
