02 Recessed Spots Fixed LED > The IP65 Mini Range
10103M/W/W

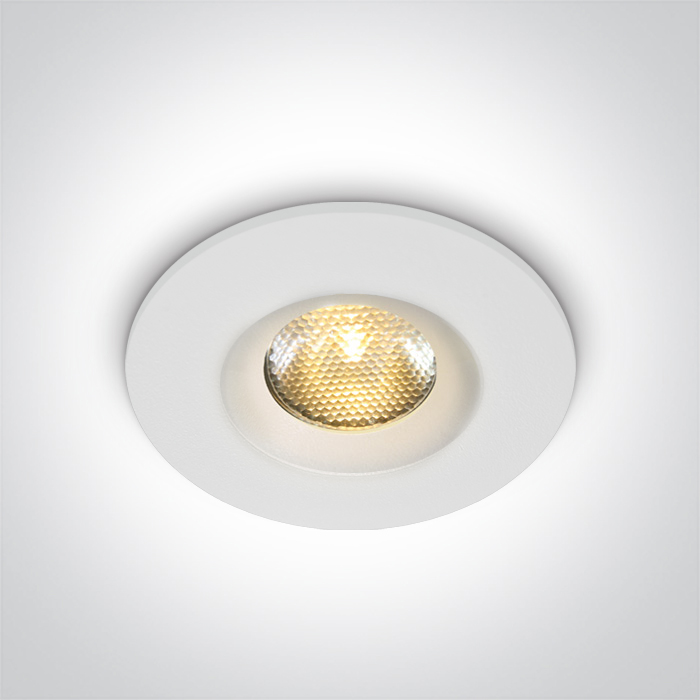

3W COB LED recessed spot with prismatic diffuser IP65.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

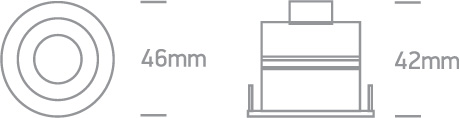

Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The IP65 Mini Range
Order Code
10103M/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
42mm
Diameter
46mm
Cutout Hole Diameter
38mm
Recessed Ceiling
Yes
Depth Required
55mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
3W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Cable Length
60cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
270lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
30°
Illumination Diagram
Packing Info
Box Weight
0.112kg
Pcs/Carton
50
Barcode
5291889065814
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
