01 Recessed Spots Fixed > The Dark Light Dual Ring Aluminium
10105ALG/B/GL

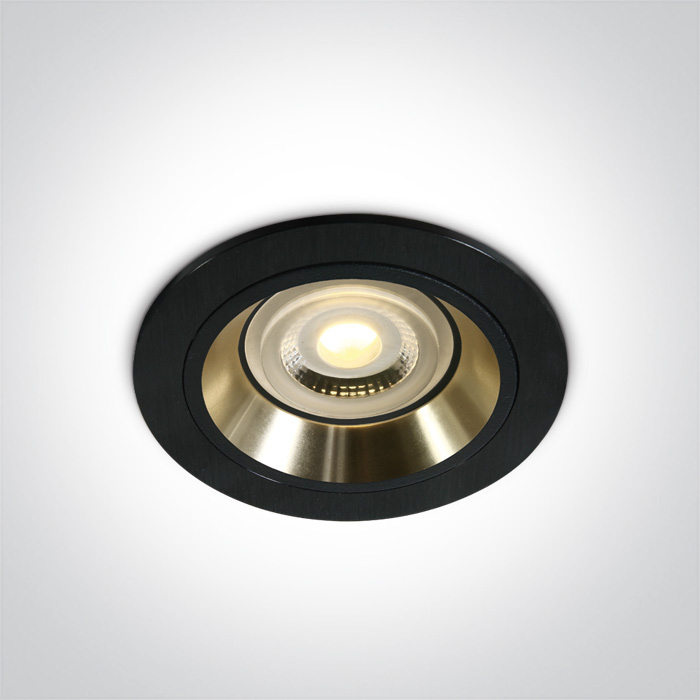

Dark Light Recessed MR16 spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Dark Light Dual Ring Aluminium
Order Code
10105ALG/B/GL
Colour
Black-Gold
Material
Aluminium
Shape
Circular
Height
30mm
Diameter
92mm
Cutout Hole Diameter
78mm
Recessed Ceiling
Yes
Depth Required
150mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10cm
Box Width
10cm
Box Height
5cm
Box Weight
0.182kg
Pcs/Carton
50
Barcode
5291889063032
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
