01 Recessed Spots Fixed > The Bathroom Range Die cast
10105CJ/MC/5

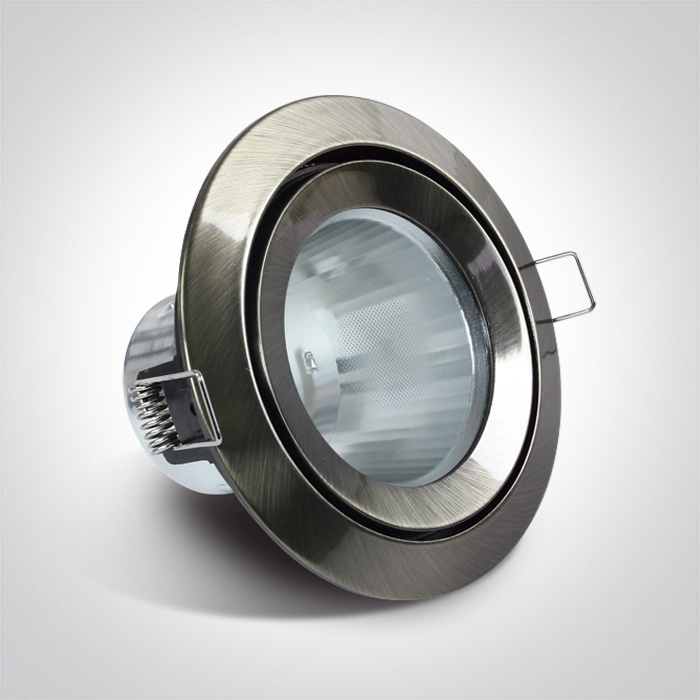

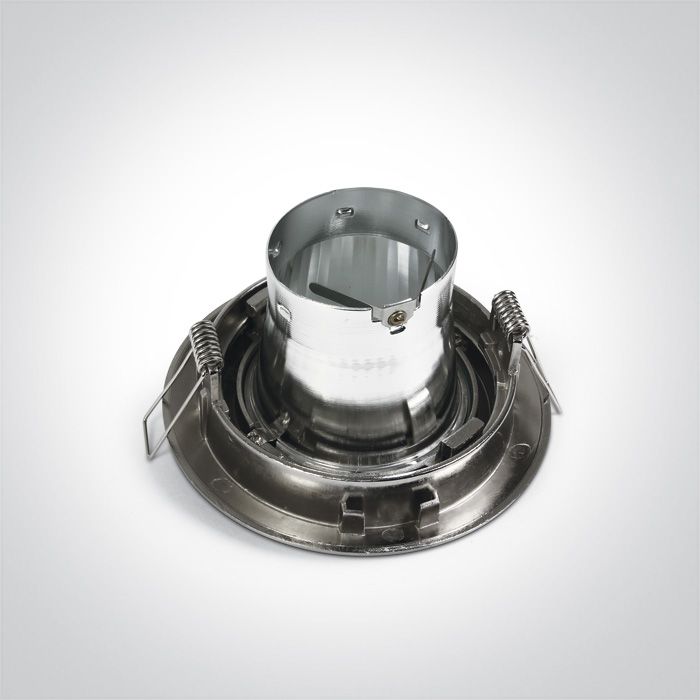

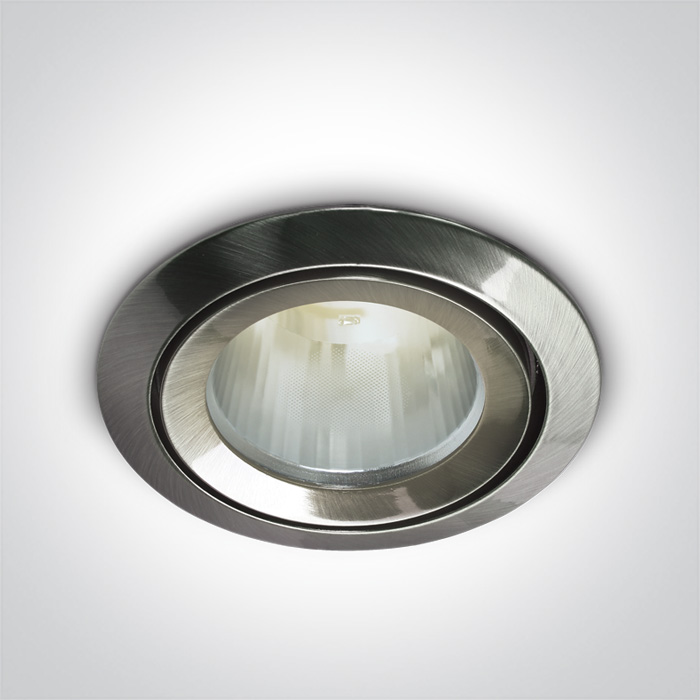

Recessed Dark light MR16 spot with GU5.3 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Bathroom Range Die cast
Order Code
10105CJ/MC/5
Colour
Brushed Chrome
Material
Die Cast
Shape
Circular
Height
65mm
Diameter
118mm
Cutout Hole Diameter
102mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V AC/DC
Safety Class
Power (Watts)
50W
IP Rating
IP43
Light Source
Replaceable lamp
Lamp Holder
GU5.3
Number of Lamps
1
LED Number
0
Cable Length
40cm
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
12cm
Box Width
12cm
Box Height
8cm
Box Weight
0.330kg
Pcs/Carton
50
Barcode
5291889001072
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
