01 Recessed Spots Fixed > The Classic MR11 & MR16 12V
10105/W

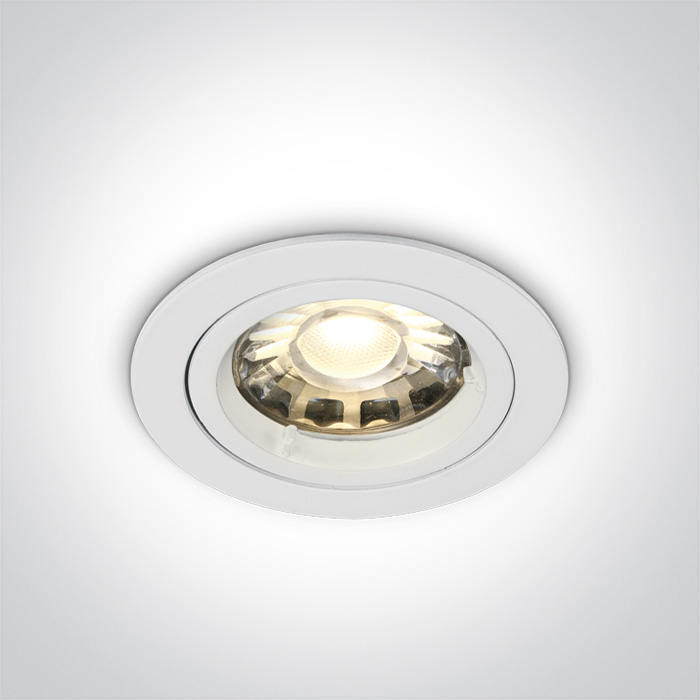

Recessed MR16 spot with GU5.3 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Classic MR11 & MR16 12V
Order Code
10105/W
Colour
White
Shape
Circular
Height
25mm
Diameter
79mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V AC/DC
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU5.3
Number of Lamps
1
LED Number
0
Cable Length
40cm
Illumination Data
Illumination Diagram
Packing Info
Box Length
8,5cm
Box Width
8,5cm
Box Height
4,3cm
Box Weight
0.083kg
Pcs/Carton
100
Barcode
5291889000884
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
