02 Recessed Spots Fixed LED > The COB LED Dark Light Range
10106DC/W/W

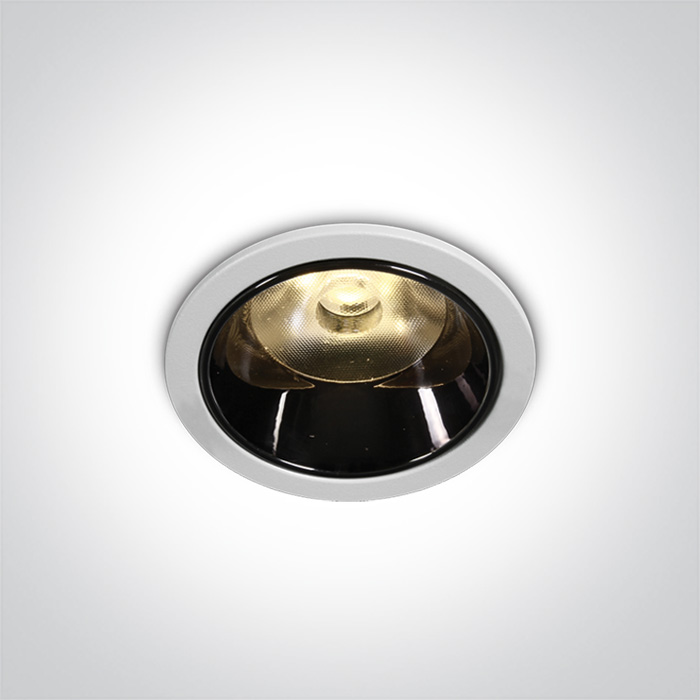

6W COB LED Dark light recessed spot with dark chrome reflector.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB LED Dark Light Range
Order Code
10106DC/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
54mm
Diameter
62mm
Cutout Hole Diameter
55mm
Recessed Ceiling
Yes
Depth Required
75mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
18V
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
570lm
Light Efficiency
95lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.204kg
Pcs/Carton
50
Barcode
5291889064756
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
