02 Recessed Spots Fixed LED > The LED Glass Range
10106G/D

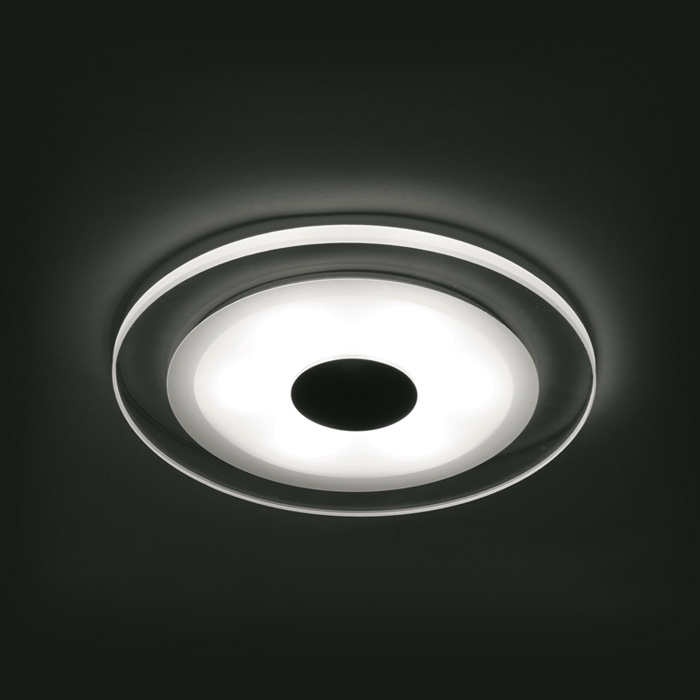

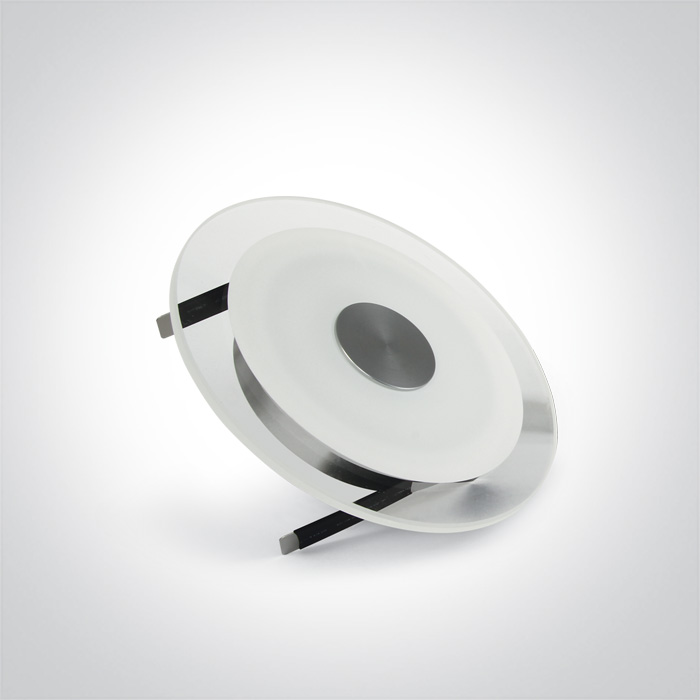

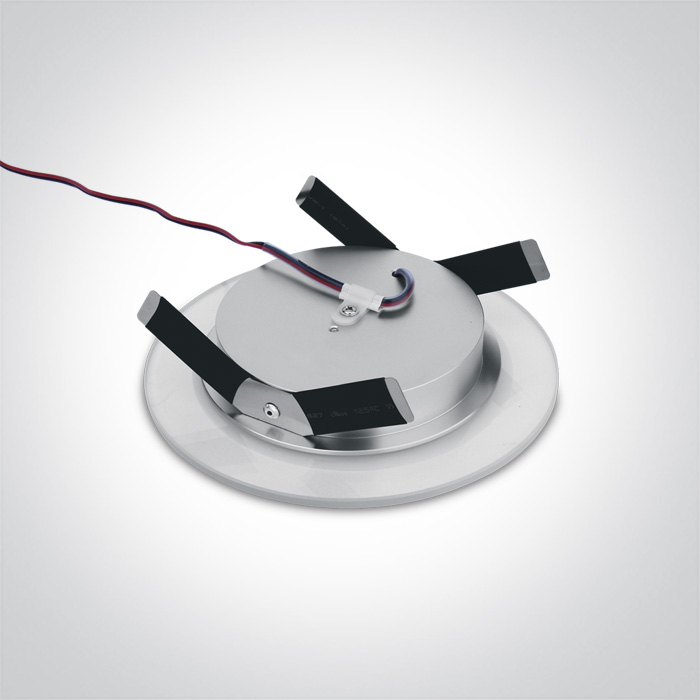

6W LED Glass range recessed spot IP20.

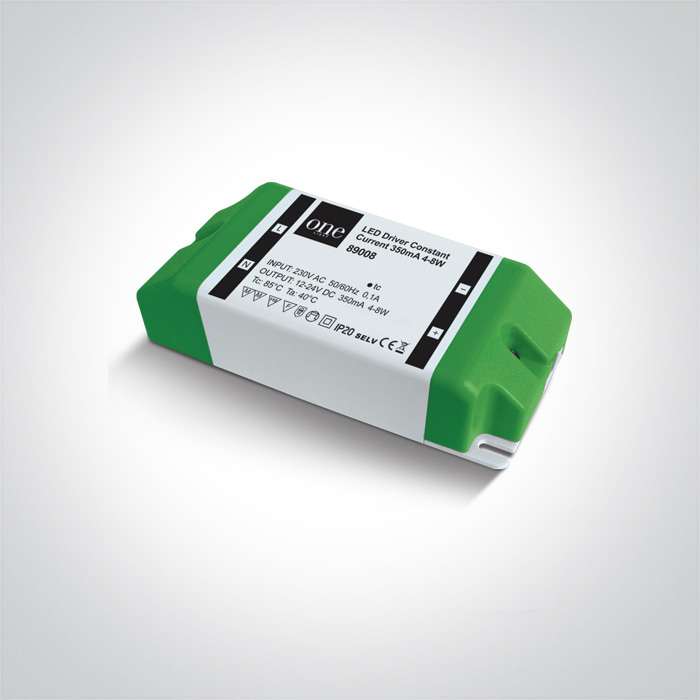

Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

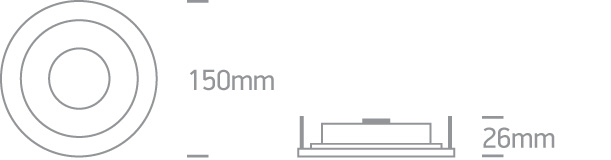

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The LED Glass Range
Order Code
10106G/D
Material
Acrylic
Shape
Circular
Height
26mm
Diameter
150mm
Cutout Hole Diameter
100mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
LED Number
6
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
6000K
Lumen Output
295lm
Light Efficiency
49,16lm/W
Illumination Diagram
Packing Info
Box Weight
0.422kg
Pcs/Carton
32
Barcode
5291889026501
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
