02 Recessed Spots Fixed LED > LED Spots
10106L/B/W

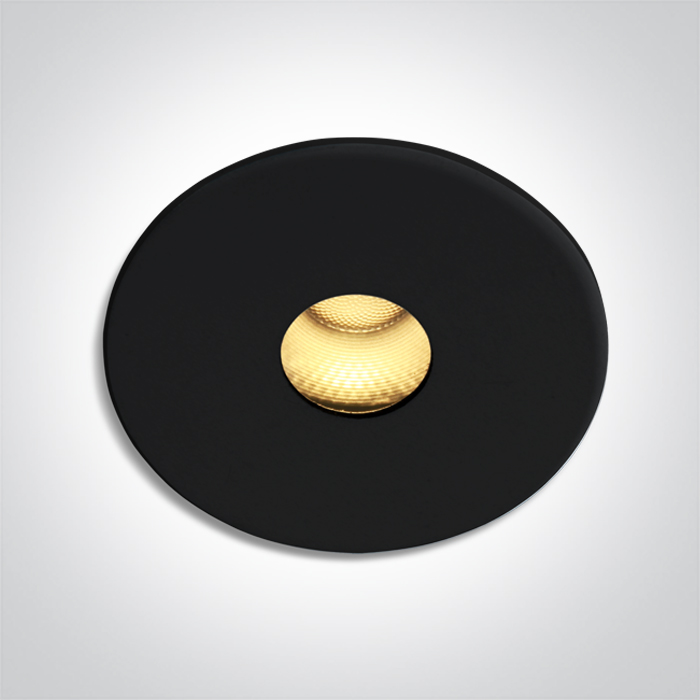

6W Recessed Dark Light LED spot IP20.

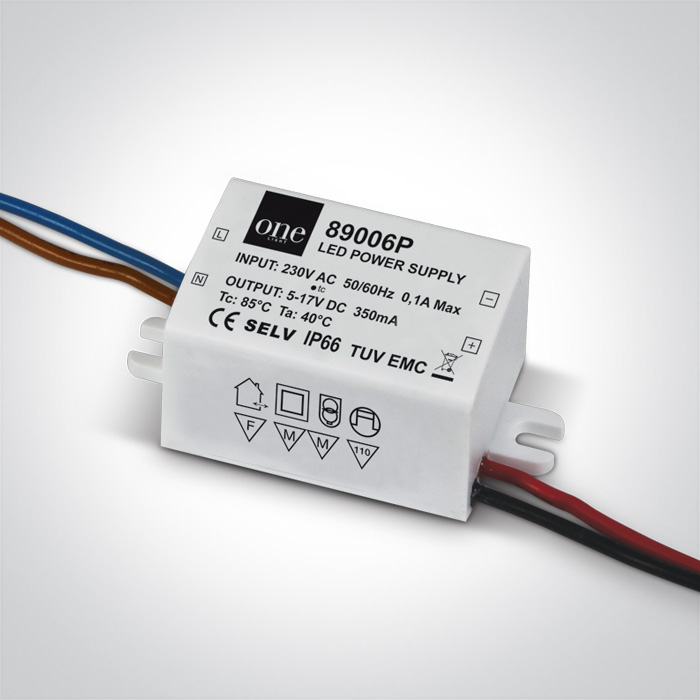

Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

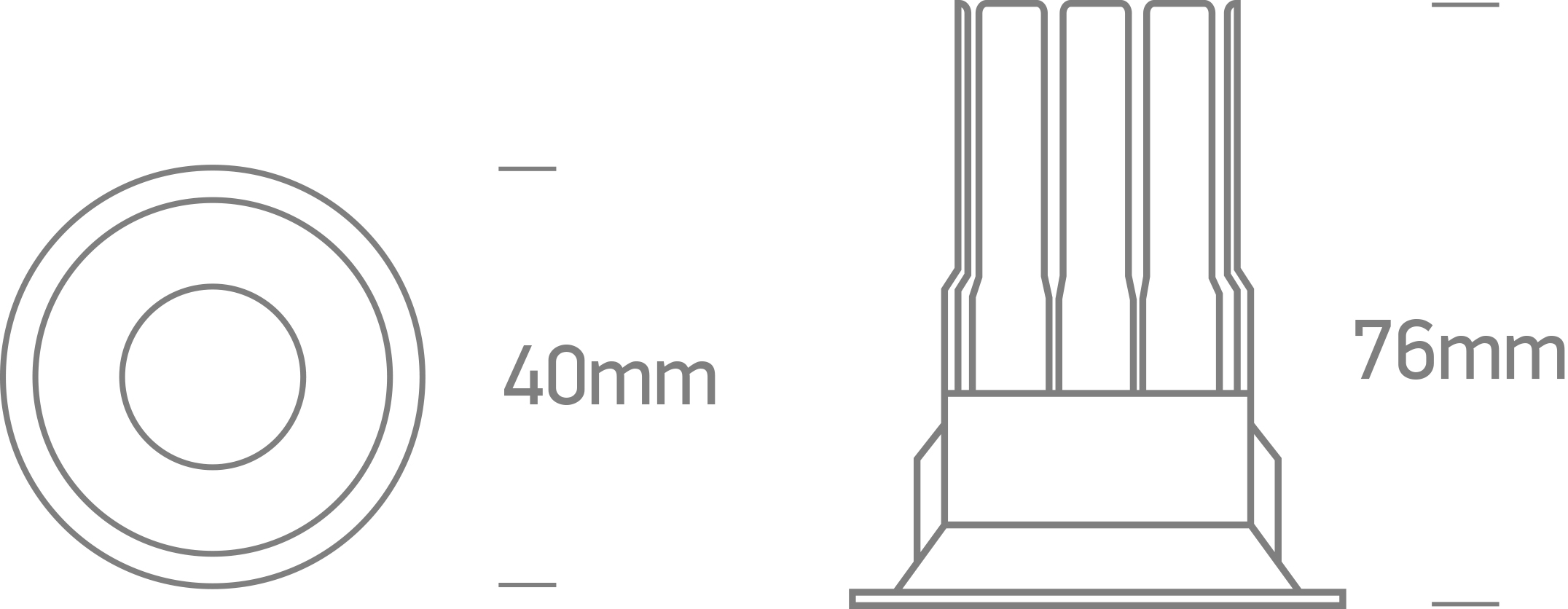

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
LED Spots
Order Code
10106L/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
76mm
Diameter
40mm
Cutout Hole Diameter
33mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
18V
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
360lm
Light Efficiency
60lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.114kg
Pcs/Carton
50
Barcode
5291889077633
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
