02 Recessed Spots Fixed LED > The Trimless 7W Range
10107BT/B/W

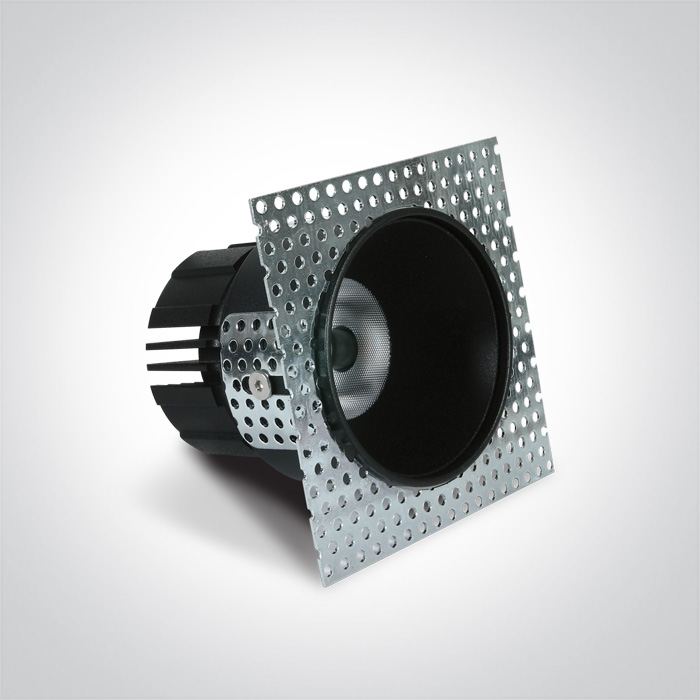

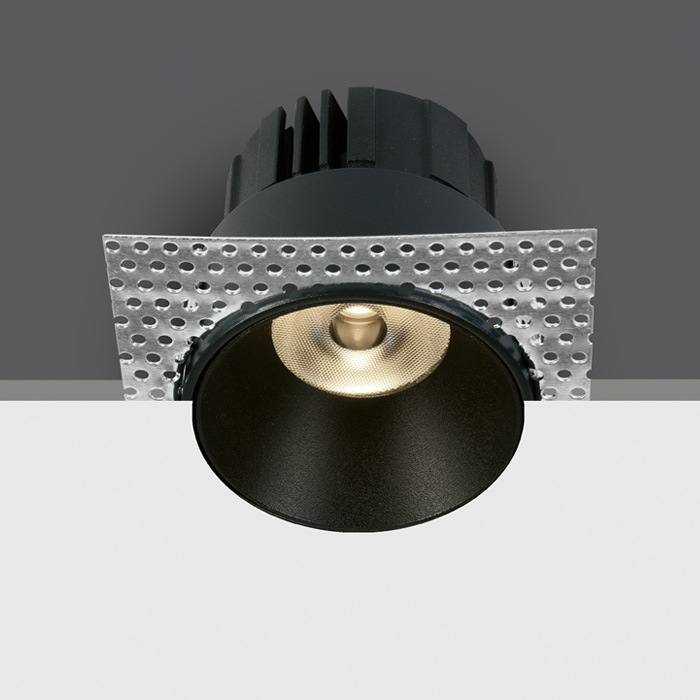

6,5W LED trimless recessed downlight, IP54. Suitable for bathroom
installations.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Trimless 7W Range
Order Code
10107BT/B/W
Colour
Black
Material
Die Cast
Shape
Circular
Height
80mm
Diameter
70mm
Cutout Hole Diameter
83mm
Recessed trimmless ceiling
Yes
Depth Required
100mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
500lm
Light Efficiency
76lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11cm
Box Width
11cm
Box Height
8cm
Box Weight
0.510kg
Pcs/Carton
30
Barcode
5291889061199
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
