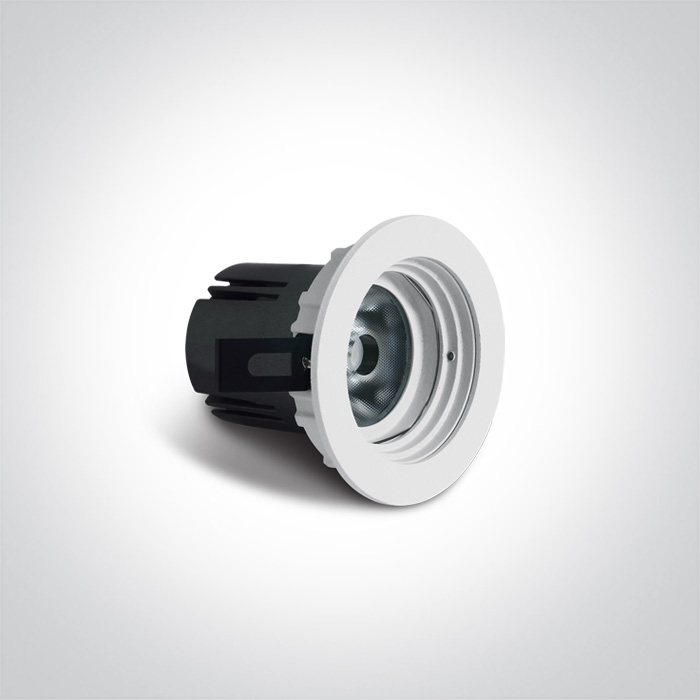

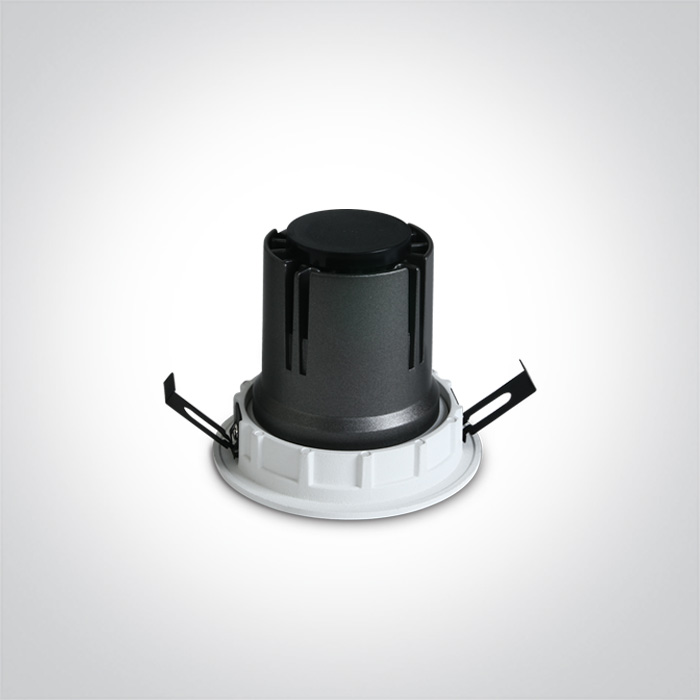

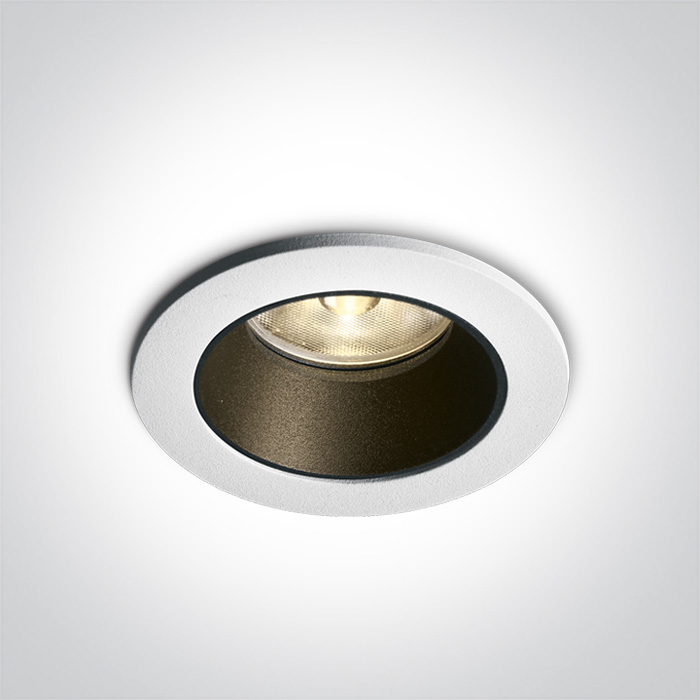

02 Recessed Spots Fixed LED > The COB Dark Light Range Interchangeable Reflector
10107K/W/W
6,5W COB LED Dark Light recessed spot IP20.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

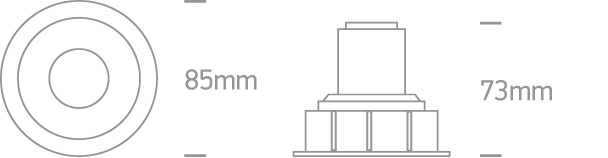

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB Dark Light Range Interchangeable Reflector
Order Code
10107K/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
73mm
Diameter
85mm
Cutout Hole Diameter
76mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
84lm/W
CRI
80
Beam Angle
35°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9,5cm
Box Width
9,5cm
Box Height
8,5cm
Box Weight
0.283kg
Pcs/Carton
30
Barcode
5291889054238
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
