06 Downlights Fixed LED > The Frameless IP65 Range
10108CF/W

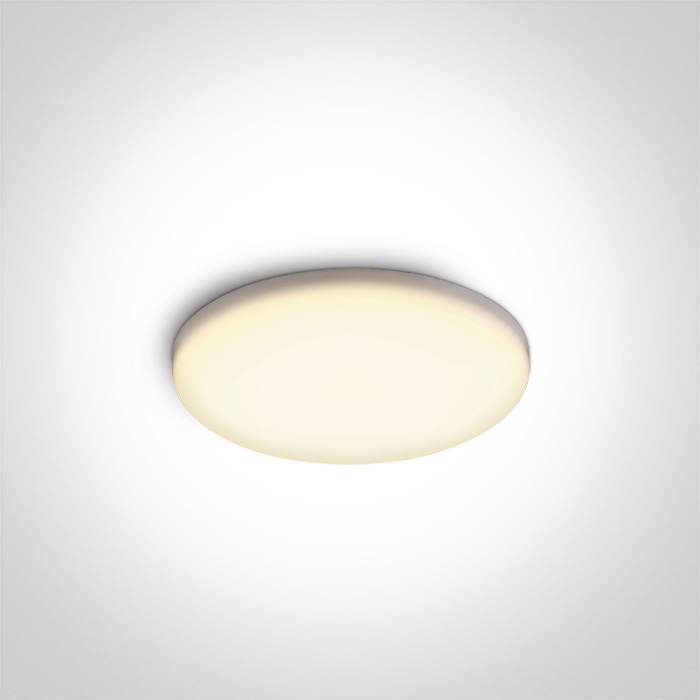

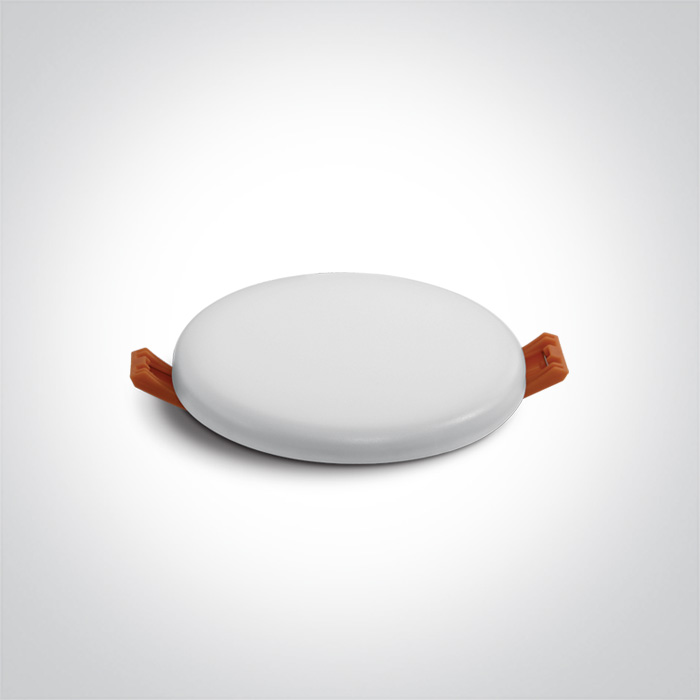

8W LED frameless downlight, IP65. Suitable for Indoor/Outdoor
installation and bathroom.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.

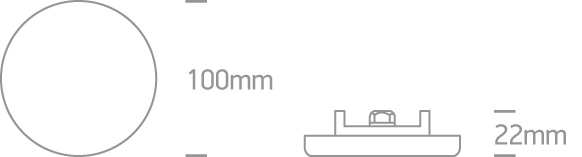

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The Frameless IP65 Range
Order Code
10108CF/W
Colour
White
Material
Die Cast
Diffuser Material
PC
Shape
Circular
Height
22mm
Diameter
100mm
Cutout Hole Diameter
80mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
11,5V
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 4014
LED Brand
Zhaochi
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5,5-9W
Power Factor
0,9
Constant Current
Yes
500mA
11-18V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
68,75lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
15,5cm
Box Width
15,5cm
Box Height
3cm
Box Weight
0.227kg
Pcs/Carton
40
Carton Length
33cm
Carton Width
32cm
Carton Height
35cm
Carton Weight
10,6Kg
Barcode
5291889057086
HS Code
9405413990
Energy Label
Energy Class
Energy Consumption
8kWh/1000h
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
