02 Recessed Spots Fixed LED > The COB IP54 Dark Light Range
10108H/W/W

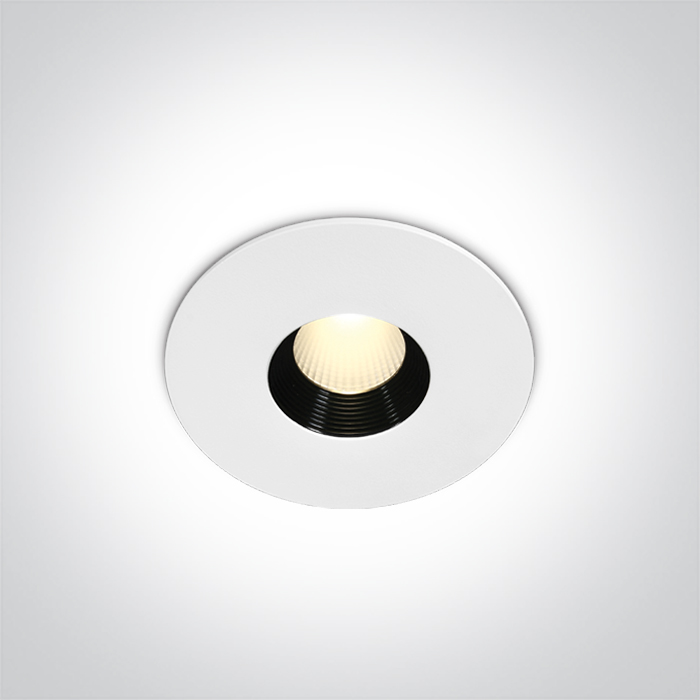

8W COB LED Dark light recessed Spot, IP54.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

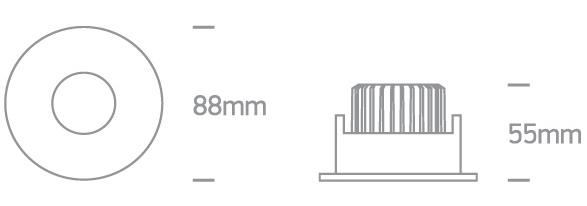

Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The COB IP54 Dark Light Range
Order Code
10108H/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
55mm
Diameter
88mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
200mA
Voltage
38V
Safety Class
Power (Watts)
7,6W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5-8,4W
Power Factor
0,9
Constant Current
Yes
200mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
75lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.314kg
Pcs/Carton
50
Barcode
5291889065135
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
