02 Recessed Spots Fixed LED > The LED Decorative Range
10108J/W/W

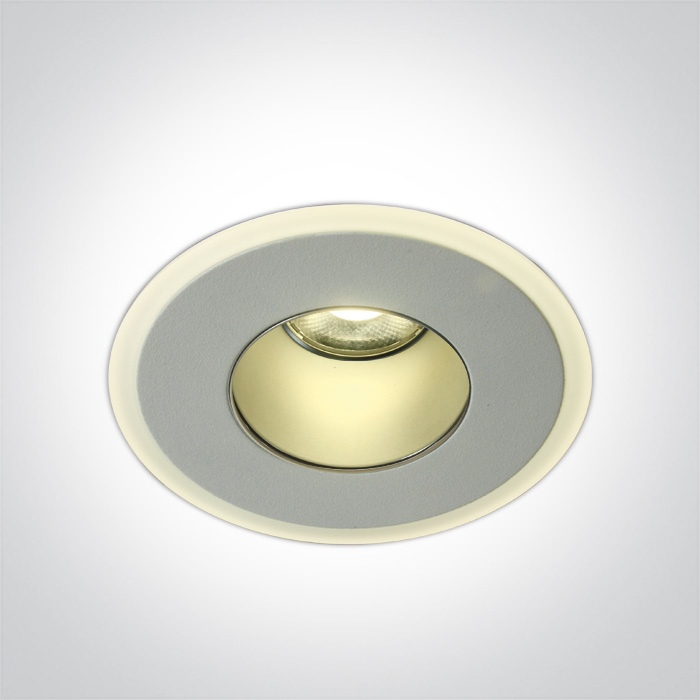

8W COB + SMD LED Dark light recessed spot.
Supplied with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.

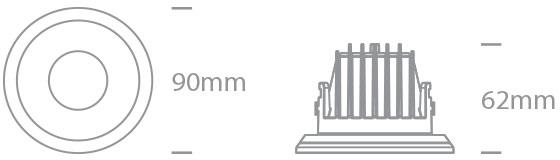

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The LED Decorative Range
Order Code
10108J/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
62mm
Diameter
90mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
200mA
Voltage
34,3V
Safety Class
Power (Watts)
6,86W
IP Rating
IP40
Light Source
LED built in
LED Type
COB+SMD 4014
LED Brand
Citizen
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-8W
Power Factor
0,9
Constant Current
Yes
200mA
30-40V
IP Rating
IP20
Safety Class
Ambient Temp
45°C
Operating Temp
90°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
24°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.286kg
Pcs/Carton
30
Barcode
5291889076155
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
