02 Recessed Spots Fixed LED > The 12W Dark Light Range Die Cast
10112TD/W/W

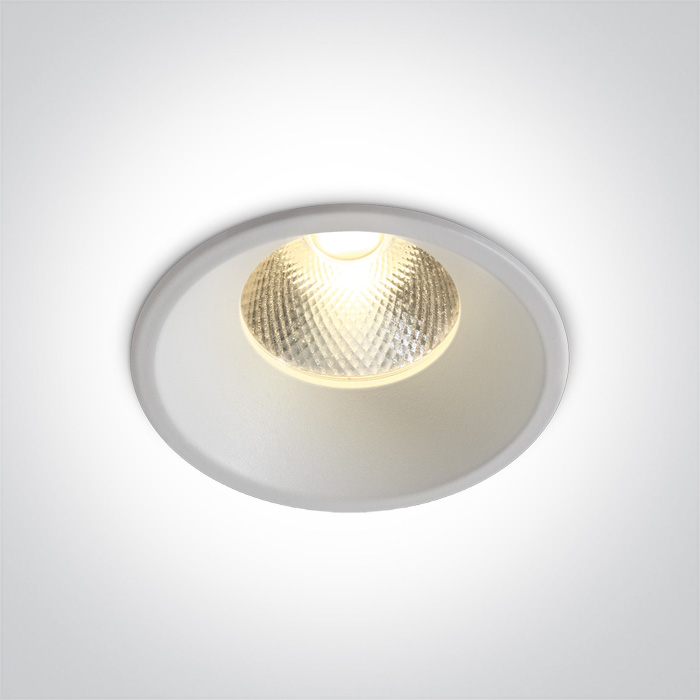

12W Recessed Dark Light LED spot with removable head, IP20.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.

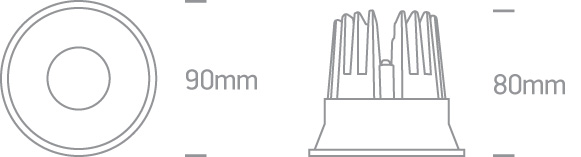

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 12W Dark Light Range Die Cast
Order Code
10112TD/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
80mm
Diameter
90mm
Cutout Hole Diameter
82mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
36V
Safety Class
Power (Watts)
10,8W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,1-12,6W
Power Factor
0,6
Constant Current
Yes
300mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
960lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
20°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11,5cm
Box Width
10cm
Box Height
11cm
Box Weight
0.392kg
Pcs/Carton
50
Barcode
5291889061519
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
