06 Downlights Fixed LED > The COB Pro Range
10115CD/W/W
15W COB LED semi dark light recessed downlight, IP20.
Complete with 400mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 400mA driver.
Complies with standard EN60598-1 and any other specific standards.

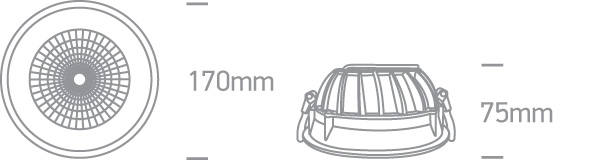

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The COB Pro Range
Order Code
10115CD/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
75mm
Diameter
170mm
Cutout Hole Diameter
160mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
400mA
Voltage
36V
Safety Class
Power (Watts)
13,8W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
10,1-16,8W
Power Factor
0,95
Constant Current
Yes
400mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1095lm
Light Efficiency
73lm/W
CRI
80
Beam Angle
180°
Illumination Diagram
Packing Info
Box Length
18cm
Box Width
18cm
Box Height
8cm
Box Weight
0.611kg
Pcs/Carton
18
Barcode
5291889042174
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
