06 Downlights Fixed LED > The COB Downlight Range Die Cast
10120CA/W/W

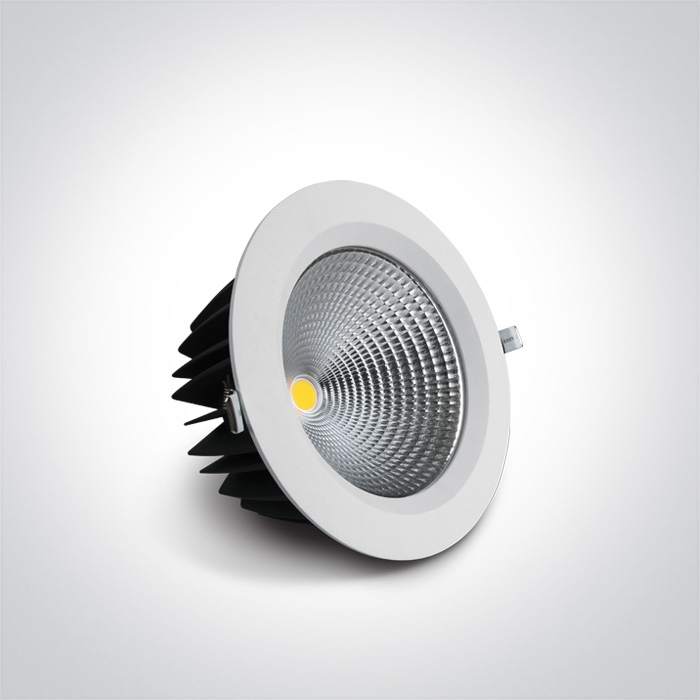

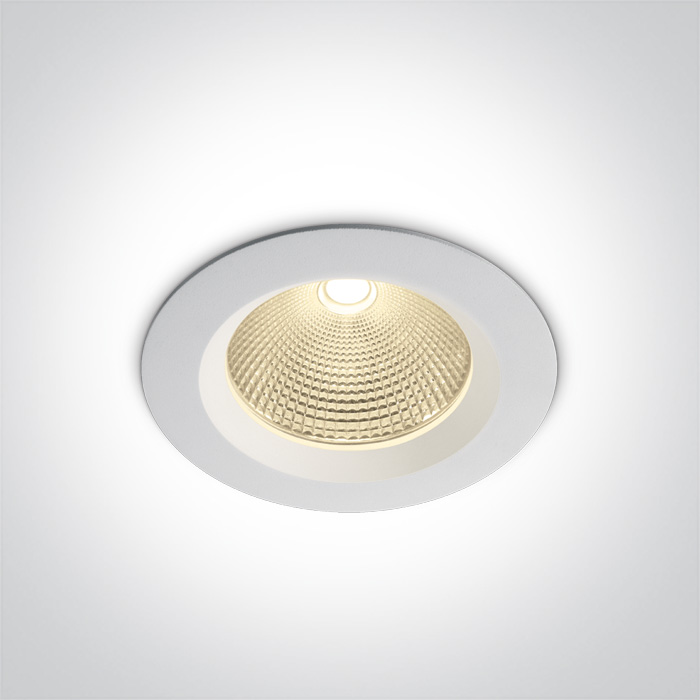

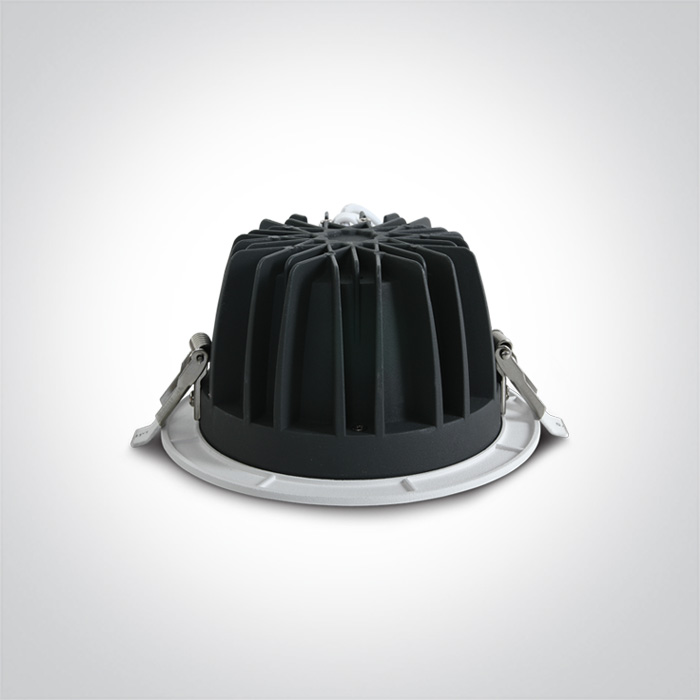

20W LED recessed downlight, IP20. Ideal for general lighting applications.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The COB Downlight Range Die Cast
Order Code
10120CA/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
75mm
Diameter
170mm
Cutout Hole Diameter
145mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
38V
Safety Class
Power (Watts)
19W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-21W
Power Factor
0,9
Constant Current
Yes
500mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1800lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Packing Info
Box Length
18,5cm
Box Width
8,5cm
Box Height
17,5cm
Box Weight
0.730kg
Pcs/Carton
20
Barcode
5291889052036
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000hrs
Wee Directive
Yes
Year in which the CE mark was affixed
17
