02 Recessed Spots Fixed LED > The Retro Dark Light Range
10120Z/B/W

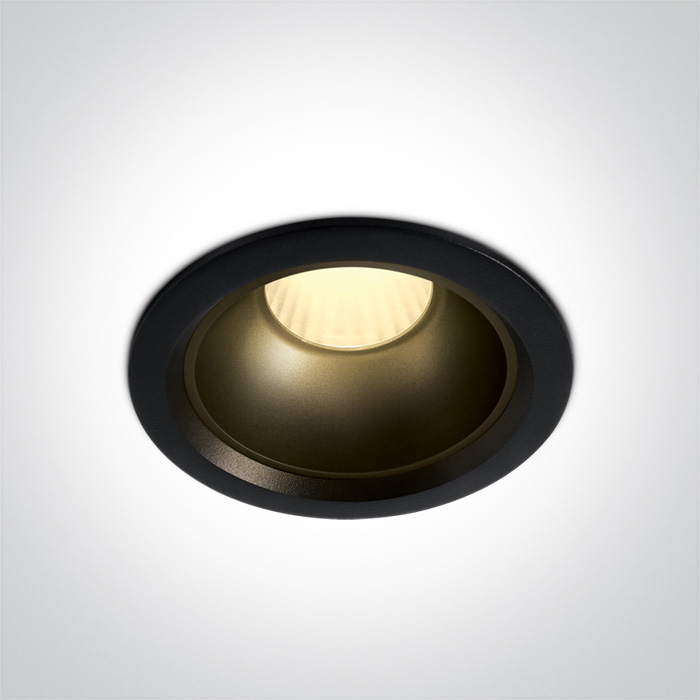

20W Recessed Dark Light LED spot with black and brass reflector, IP20.
Supplied with Black & Brass reflectors.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black & Brass reflectors.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Retro Dark Light Range
Order Code
10120Z/B/W
Colour
Black
Material
Die Cast + Plastic
Shape
Circular
Height
85mm
Diameter
118mm
Cutout Hole Diameter
105mm
Recessed Ceiling
Yes
Depth Required
105mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
37,2V
Safety Class
Power (Watts)
18,6W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-20W
Power Factor
0,5
Constant Current
Yes
500mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
45°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
16cm
Box Width
13,5cm
Box Height
10cm
Box Weight
0.520kg
Pcs/Carton
20
Barcode
5291889059035
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
