06 Downlights Fixed LED > Round Downlights
.jpg)
10142/W

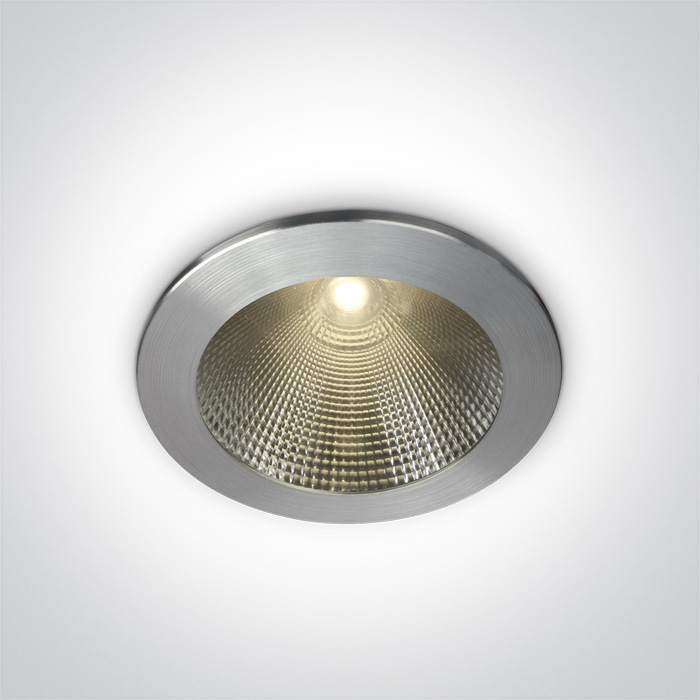

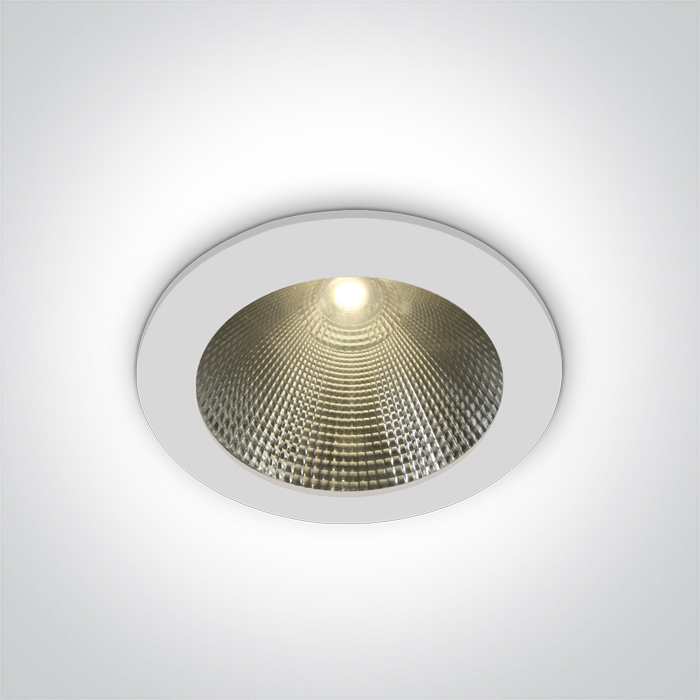

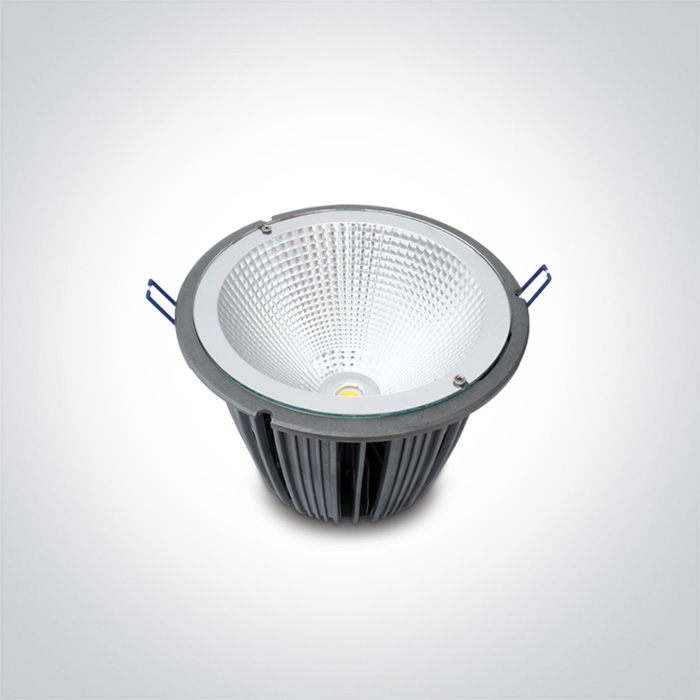

42W LED recessed downlight with interchangeable rings, IP20. Ideal for general lighting applications.

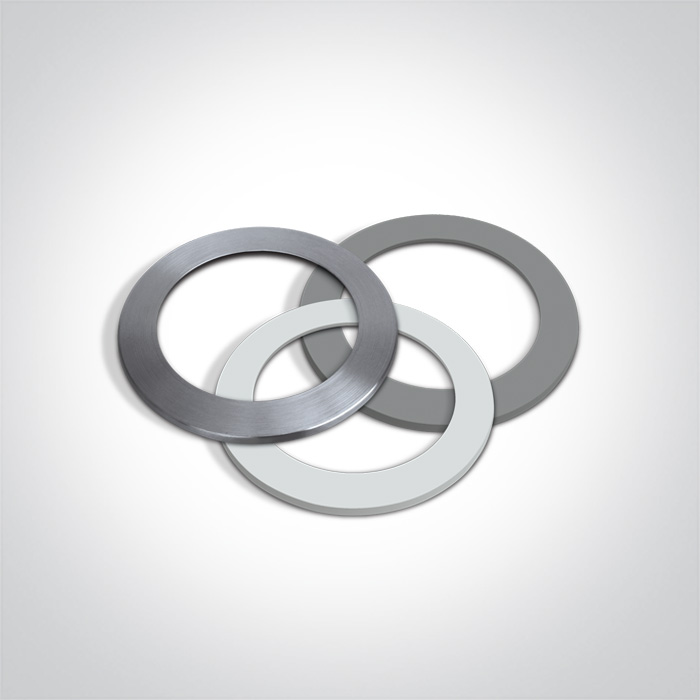

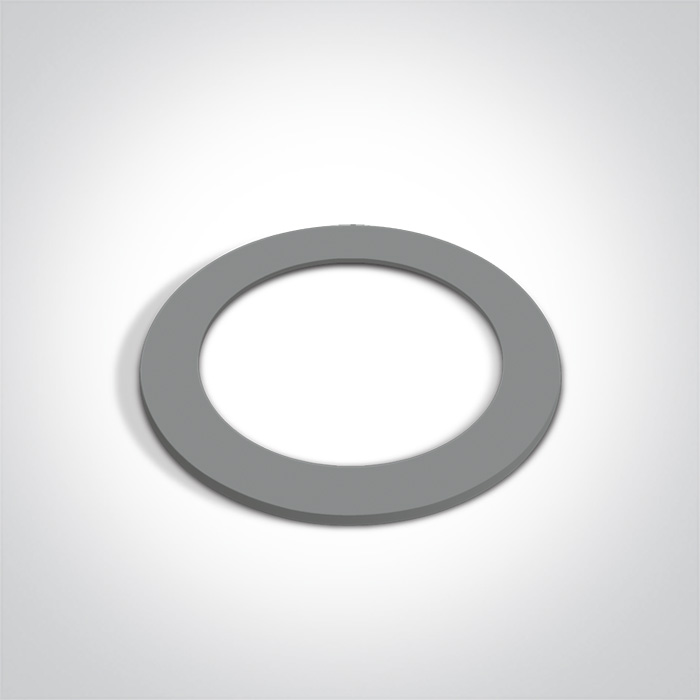

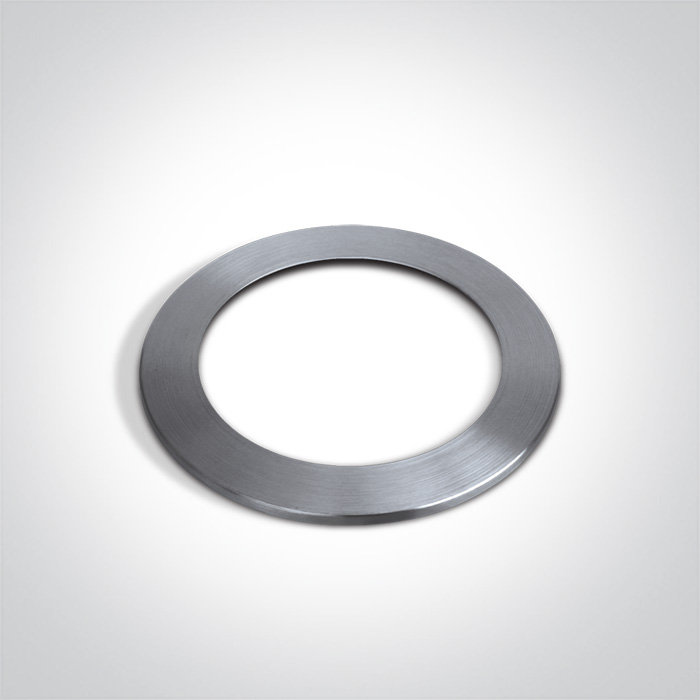

Rings must be order separately.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.
Rings must be order separately.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.

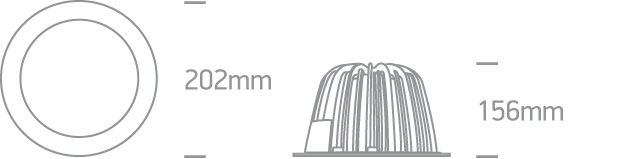

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
Round Downlights
Order Code
10142/W
Material
Aluminium
Shape
Circular
Height
156mm
Diameter
202mm
Cutout Hole Diameter
180mm
Recessed Ceiling
Yes
Depth Required
170mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
42W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
40V
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
LED Brand
Citizen
F Mark
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
27-42W
Power Factor
0,9
Constant Current
Yes
1000mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
3290lm
Light Efficiency
78,33lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Packing Info
Box Length
21,5cm
Box Width
19cm
Box Height
21,5cm
Box Weight
1.840kg
Pcs/Carton
4
Barcode
5291889033417
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
