03 Recessed Spots Adjustable > The Lock Ring GU10 Range Die cast
11105CGU/W

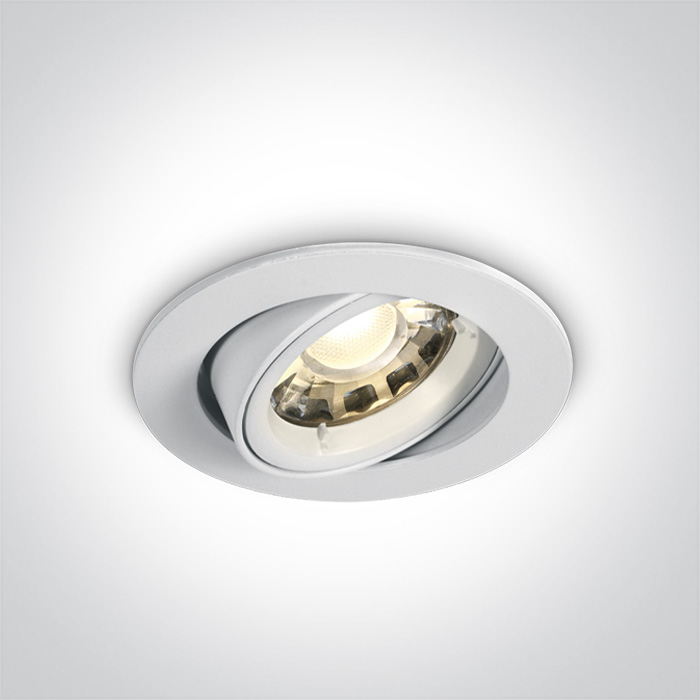

Recessed adjustable MR16 spot with GU10 lamp holder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

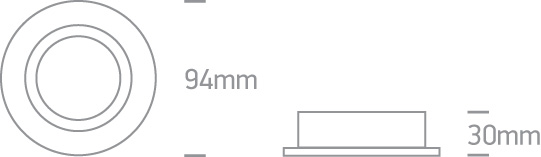

Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Lock Ring GU10 Range Die cast
Order Code
11105CGU/W
Colour
White
Material
Die Cast
Shape
Circular
Height
30mm
Diameter
94mm
Cutout Hole Diameter
82mm
Recessed Ceiling
Yes
Depth Required
95mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Length
10cm
Box Width
10cm
Box Height
5cm
Box Weight
0.164kg
Pcs/Carton
100
Barcode
5291889036166
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
14
