04 Recessed Spots Adjustable LED > The IP54 COB Outdoor/Bathroom Range
11106PK/W/W

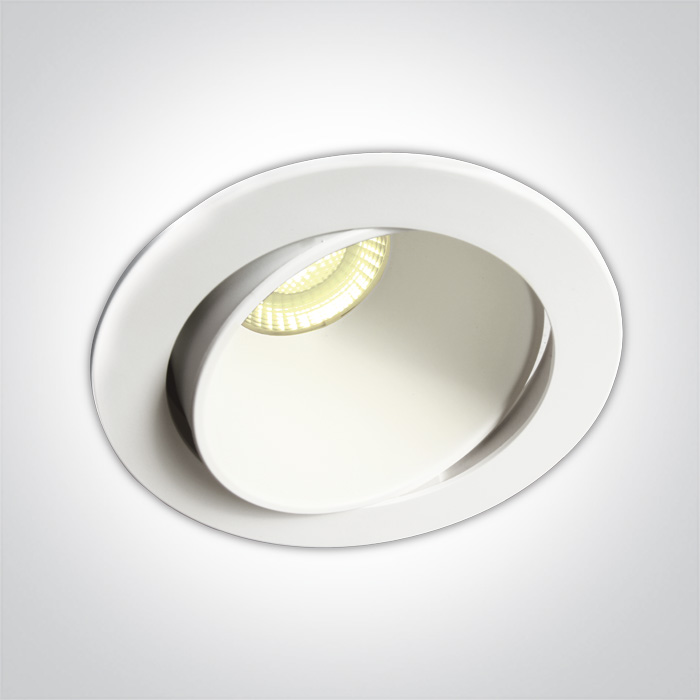

8W Dark light recessed spot.
Supplied with 100mA dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 100mA dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

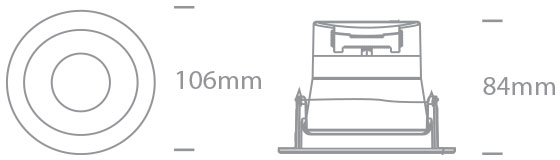

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The IP54 COB Outdoor/Bathroom Range
Order Code
11106PK/W/W
Colour
White
Material
Plastic
Shape
Circular
Height
84mm
Diameter
106mm
Cutout Hole Diameter
92mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP54
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
Input Current
100mA
Voltage
70V
Power (Watts)
7W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Jufei
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-8W
Power Factor
0,9
Constant Current
Yes
100mA
0
IP Rating
IP20
Safety Class
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
850lm
Light Efficiency
106,25lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.240kg
Pcs/Carton
30
Barcode
5291889076162
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
