04 Recessed Spots Adjustable LED > The Interchangable Rings Range Aluminium
11107K/W/W
6,5W COB LED adjustable recessed spot with interchargeable rings.
Ring must be ordered separately.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Ring must be ordered separately.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

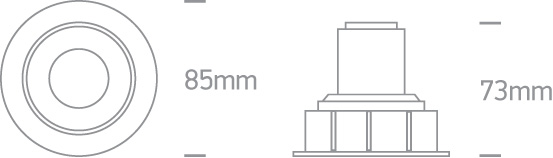

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Interchangable Rings Range Aluminium
Order Code
11107K/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
73mm
Diameter
85mm
Cutout Hole Diameter
76mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9,3V
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
84lm/W
CRI
80
Beam Angle
35°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9,5cm
Box Width
9,5cm
Box Height
8,5cm
Box Weight
0.280kg
Pcs/Carton
30
Barcode
5291889054160
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
