04 Recessed Spots Adjustable LED > The COB Cylinders

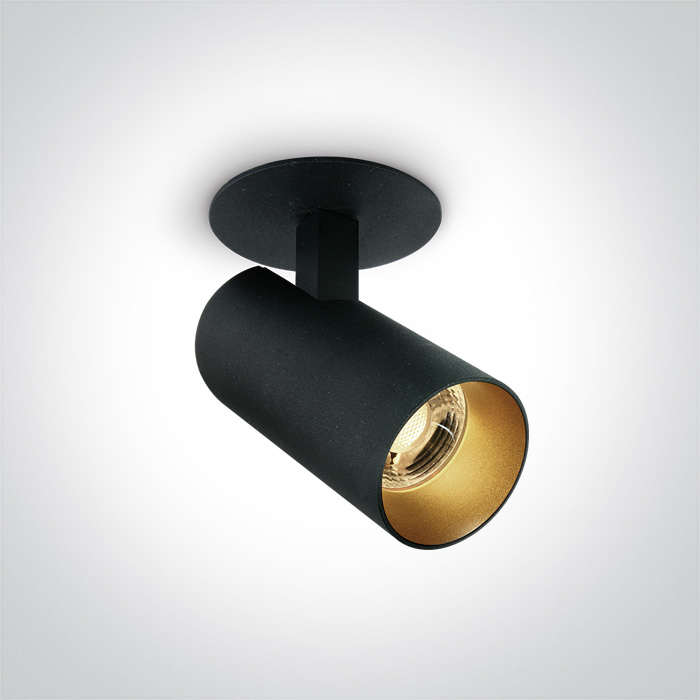

11107RA/B/W
6,5W COB LED recessed adjustable spot, for general lighting
applications.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Cylinders
Order Code
11107RA/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
90mm
Diameter
60mm
Cutout Hole Diameter
45mm
Recessed Ceiling
Yes
Depth Required
40mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9,3V
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
500lm
Light Efficiency
76lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
6,5cm
Box Width
6,5cm
Box Height
12,5cm
Box Weight
0.208kg
Pcs/Carton
36
Barcode
5291889058380
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
