04 Recessed Spots Adjustable LED > The COB Recessed Cylinders

11109B/W/W

Gallery
11109B/W/W
11109B/W/W
11109B/W/W

Must be ordered separately
11109B/W/W

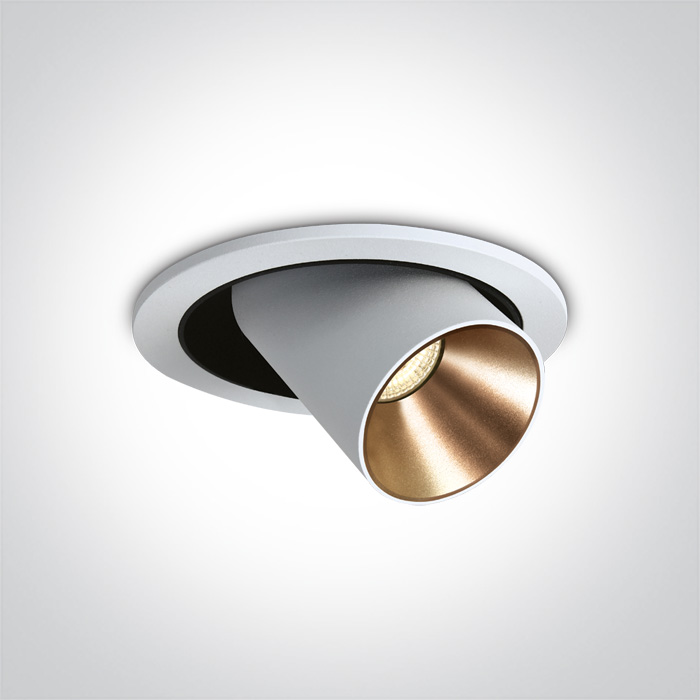

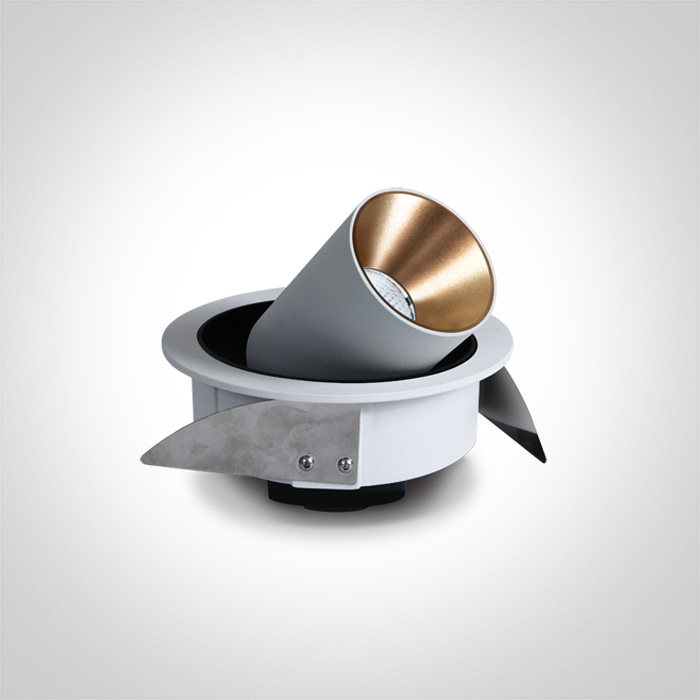

9W COB LED recessed spot IP20.

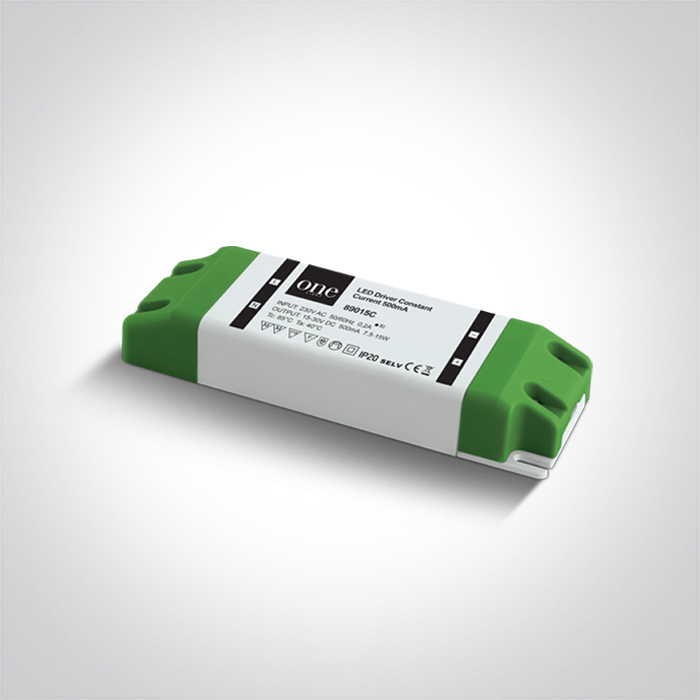

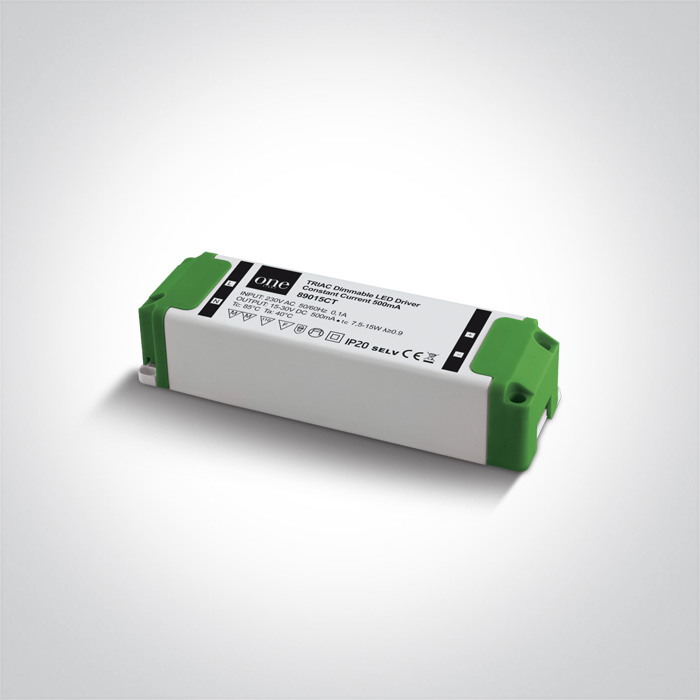

Requires 500mA driver.

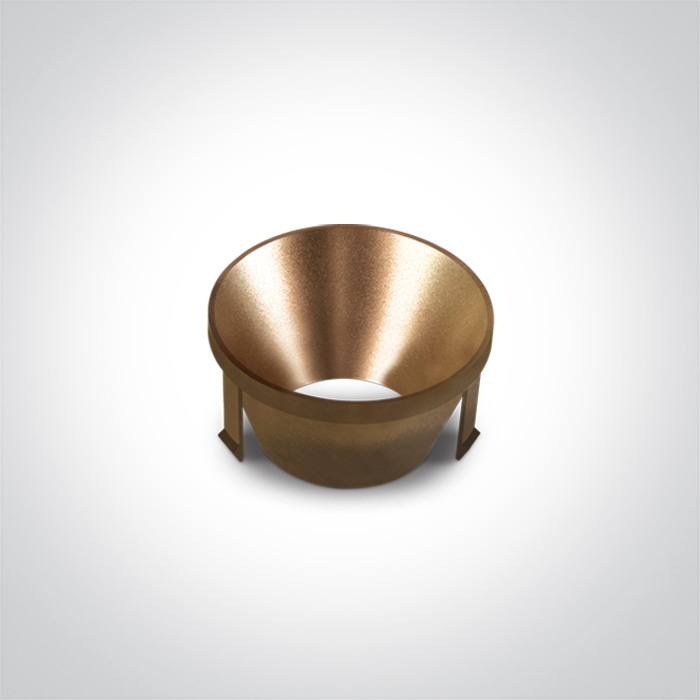

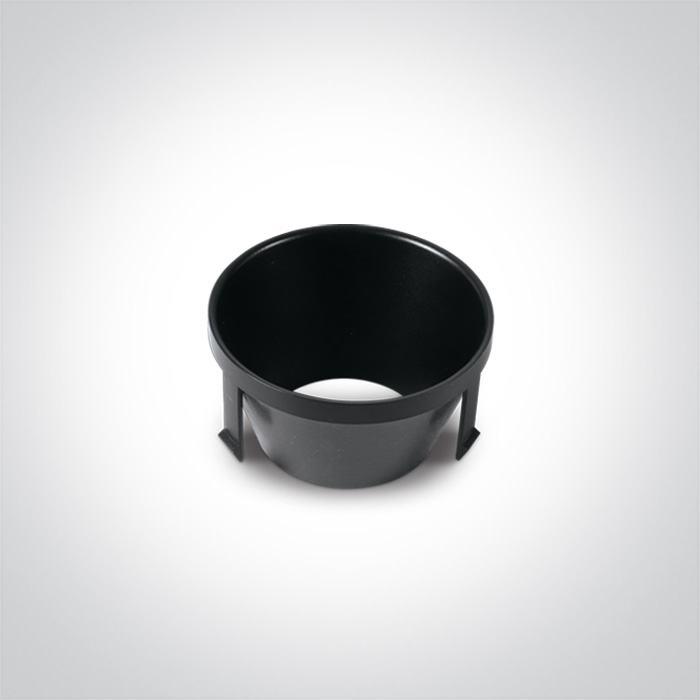

Complete with Black & Brass reflectors.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Adjustable
Dark Light
Beam Angle
Quick Fix
CE
Dimensions
Downloads

Physical Specification

+
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Recessed Cylinders
Order Code
11109B/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
134mm
Diameter
136mm
Cutout Hole Diameter
120mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
2 Directions

Electrical Characteristics

+
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
500mA
Safety Class
Power (Watts)
9W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark

Illumination Data

+
Colour Temperature
3000K
Lumen Output
675lm
Light Efficiency
75lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes

Packing Info

+
Box Weight
0.833kg
Pcs/Carton
12
Barcode
5291889068716
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
