04 Recessed Spots Adjustable LED > The COB Recessed Cylinders
11111C/B/W

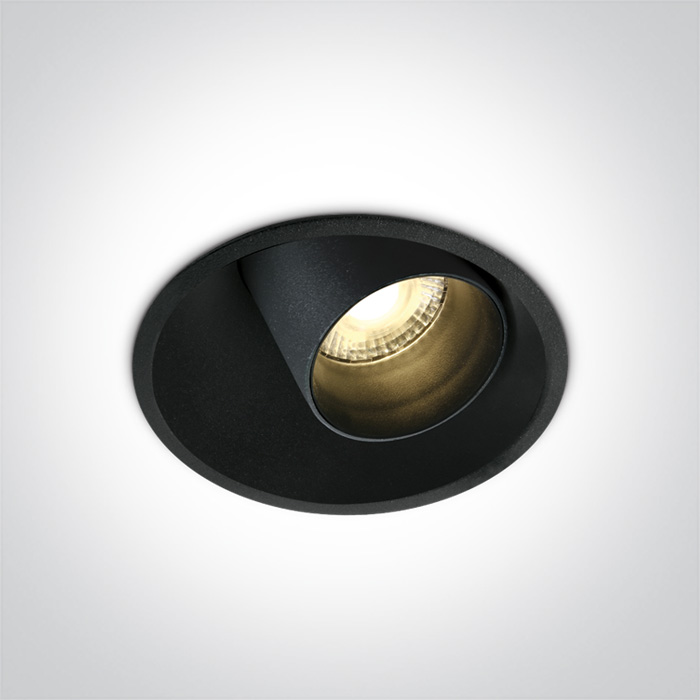

11W COB LED recessed adjustable spot, for general lighting
applications.

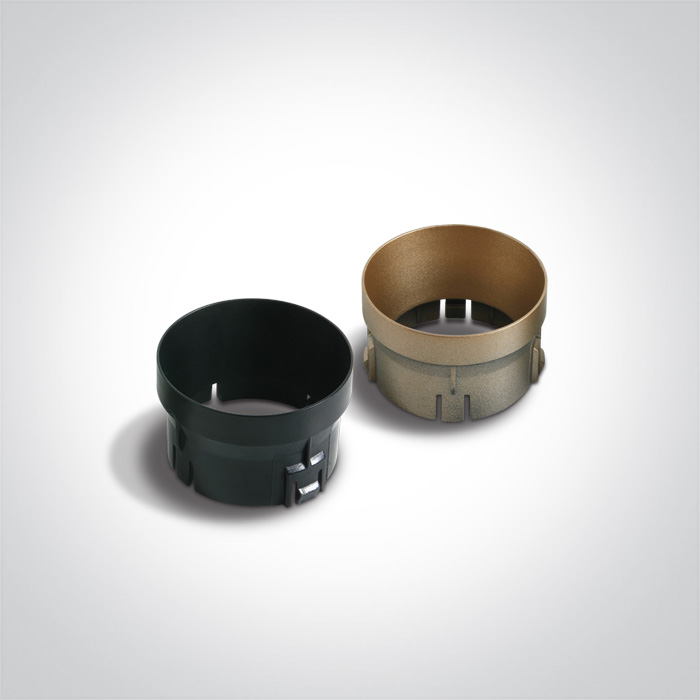

Supplied with Black & Brass reflectors.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black & Brass reflectors.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Recessed Cylinders
Order Code
11111C/B/W
Colour
Black
Material
Die Cast
Shape
Circular
Height
98mm
Diameter
90mm
Cutout Hole Diameter
85mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
11W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
37V
Safety Class
Power (Watts)
9,25W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Luminus
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,5-12W
Power Factor
0,5
Constant Current
Yes
250mA
30-48V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
820lm
Light Efficiency
74,5lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
12cm
Box Width
12cm
Box Height
9,5cm
Box Weight
0.400kg
Pcs/Carton
20
Barcode
5291889059479
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
