04 Recessed Spots Adjustable LED > The 12W COB Range
11112/AL/W

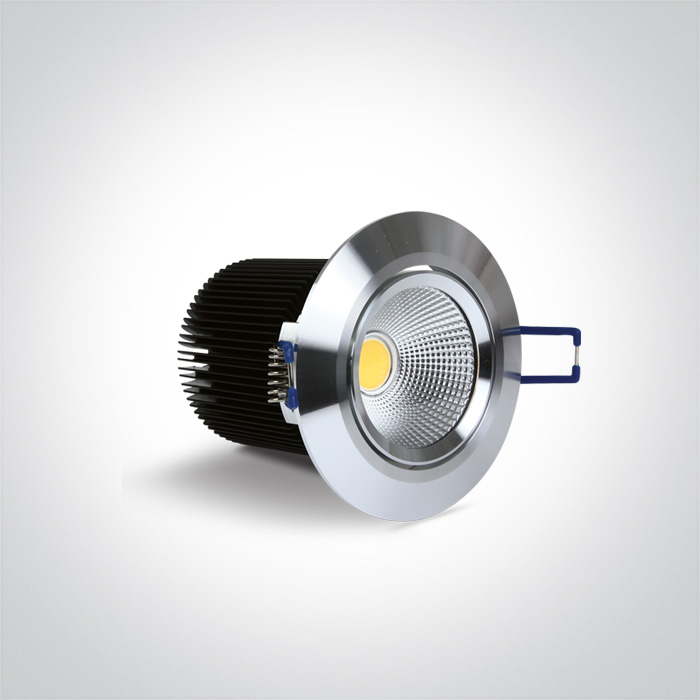

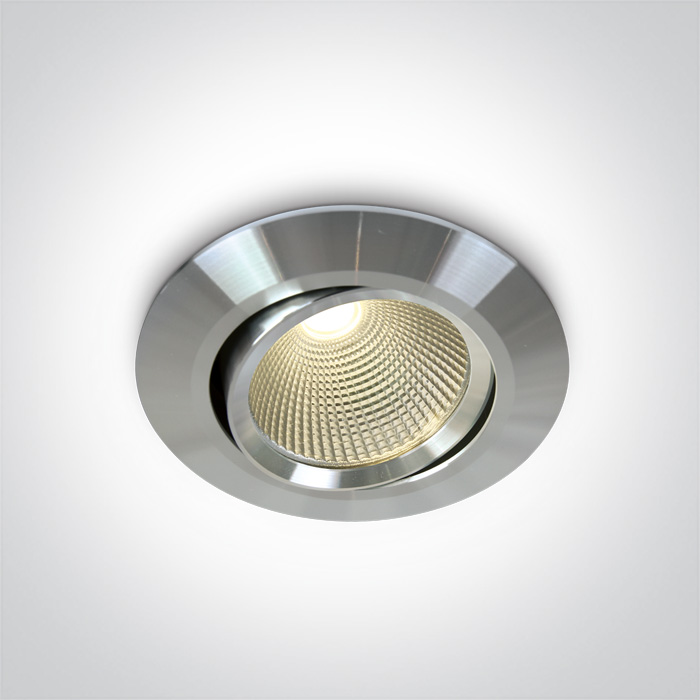

12W COB LED Recessed Adjustable Spot.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards

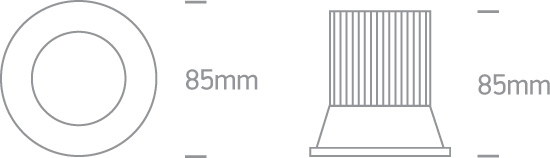

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The 12W COB Range
Order Code
11112/AL/W
Colour
Aluminium
Material
Natural Aluminium
Shape
Circular
Height
85mm
Diameter
85mm
Cutout Hole Diameter
78mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
14-16V
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
91,67lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
11cm
Box Width
9cm
Box Height
9cm
Box Weight
0.326kg
Pcs/Carton
50
Barcode
5291889038962
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Year in which the CE mark was affixed
13
