07 Downlights Adjustable LED > The COB Trimless LED Aluminium
11130BT/W/C

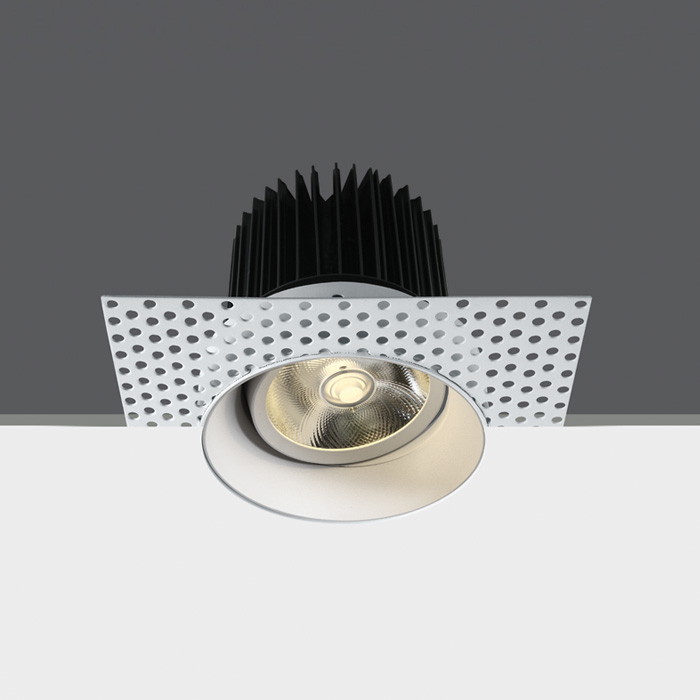

30W COB Recessed adjustable Trimless LED spot, IP20.

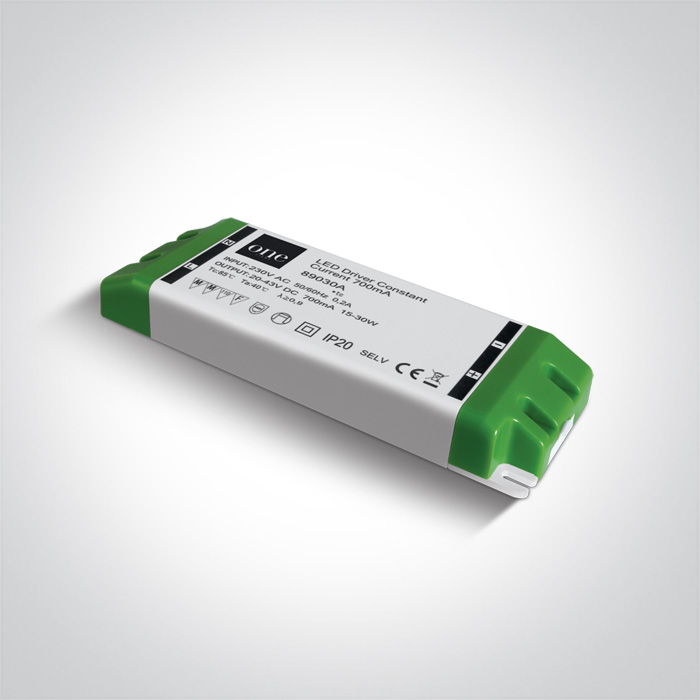

Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

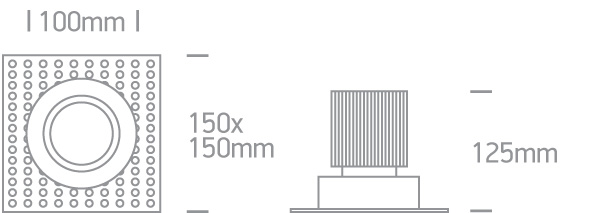

Dimensions
Downloads
Physical Specification
Item Group
07 Downlights Adjustable LED
Family
The COB Trimless LED Aluminium
Order Code
11130BT/W/C
Colour
White
Material
Aluminium
Shape
Rectangular
Length
150mm
Width
150mm
Height
125mm
Cutout Hole Diameter
110mm
Recessed trimmless ceiling
Yes
Depth Required
160mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
42V
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
2200lm
Light Efficiency
73,33lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
15,5cm
Box Width
15,5cm
Box Height
13cm
Box Weight
0.875kg
Pcs/Carton
12
Barcode
5291889051510
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
