13 Wall & Ceiling LED > The Dark Light Ceiling Lights

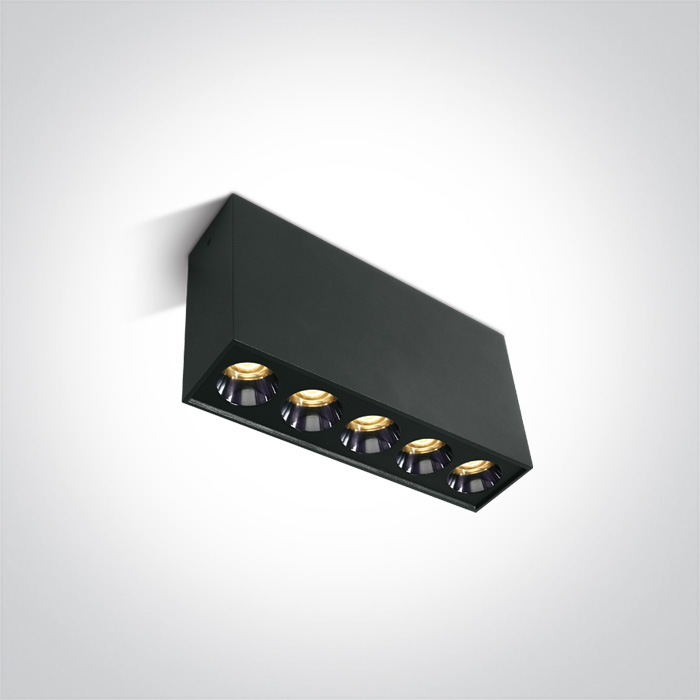

12112H/B/W
12W Dark light surface ceiling spot, IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.







Dimensions

Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Dark Light Ceiling Lights
Order Code
12112H/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
138mm
Width
36mm
Height
83mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
Safety Class

Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
16V
Safety Class

Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
LED Number
5
F Mark

Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,7-11,9W
Power Factor
0,85
Constant Current
Yes
700mA
11-17V
IP Rating
IP20
Safety Class

Dimmable
No
Ambient Temp
-20°C…+45°C
Operating Temp
75°C
Illumination Data
Colour Temperature
3000K
Lumen Output
840lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
38°
Illumination Diagram

Dark Light
Yes
Packing Info
Box Weight
0.452kg
Pcs/Carton
40
Barcode
5291889074724
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
