13 Wall & Ceiling LED > The PRO Cylinders Range
12115F/B/W
15W COB LED cylinder.
Complete with 350mA driver.
Interchangeable reflector rings can be ordered separately.
Complies with standard EN60598-1 and any other specific standards.
Complete with 350mA driver.
Interchangeable reflector rings can be ordered separately.
Complies with standard EN60598-1 and any other specific standards.

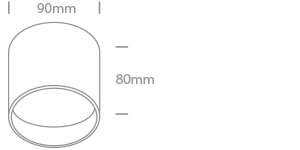

Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The PRO Cylinders Range
Order Code
12115F/B/W
Colour
Black
Material
Die Cast
Shape
Circular
Height
80mm
Diameter
90mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
38V
Power (Watts)
13,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
10,5-14,7W
Power Factor
0,9
Constant Current
Yes
350mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1800lm
Light Efficiency
120lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.440kg
Pcs/Carton
20
Barcode
5291889076575
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
