13 Wall & Ceiling LED > The PRO Cylinders Range
12120F/W/W

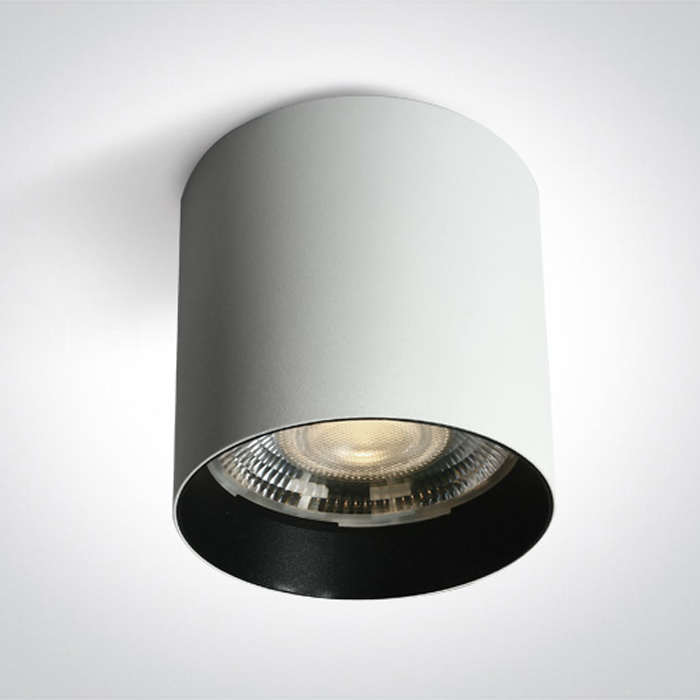

20W COB LED cylinder.
Complete with 450mA driver.
Interchangeable reflector rings can be ordered separately.
Complies with standard EN60598-1 and any other specific standards.
Complete with 450mA driver.
Interchangeable reflector rings can be ordered separately.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The PRO Cylinders Range
Order Code
12120F/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
100mm
Diameter
100mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
450mA
Voltage
40V
Power (Watts)
18W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,15-18,9W
Power Factor
0,9
Constant Current
Yes
450mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
2400lm
Light Efficiency
120lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.660kg
Pcs/Carton
10
Barcode
5291889076599
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
