New 2025 Edition 2 > Wall & Ceiling LED
12125D/W/V
CCT Variable 25W LED surface mounted downlight. IP44.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

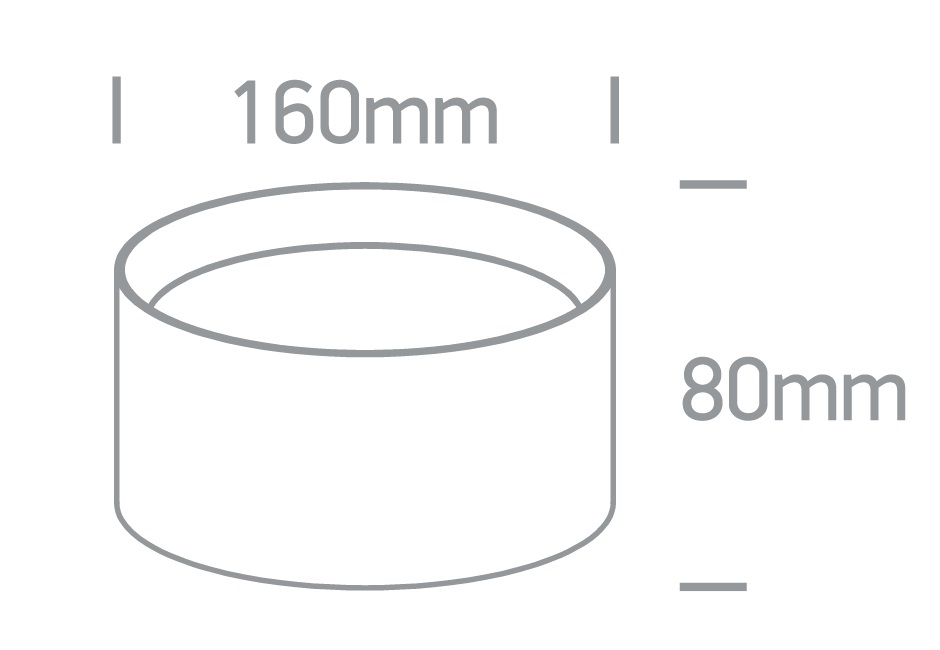

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Wall & Ceiling LED
Order Code
12125D/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
80mm
Diameter
160mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP44
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
650mA
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
2500lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
90°
Illumination Diagram
Packing Info
Box Weight
0.785kg
Pcs/Carton
20
Barcode
5291889082804
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
