08 Strips & Profiles > The 230V Solid LED Strip Aluminium + PC
38104L/W

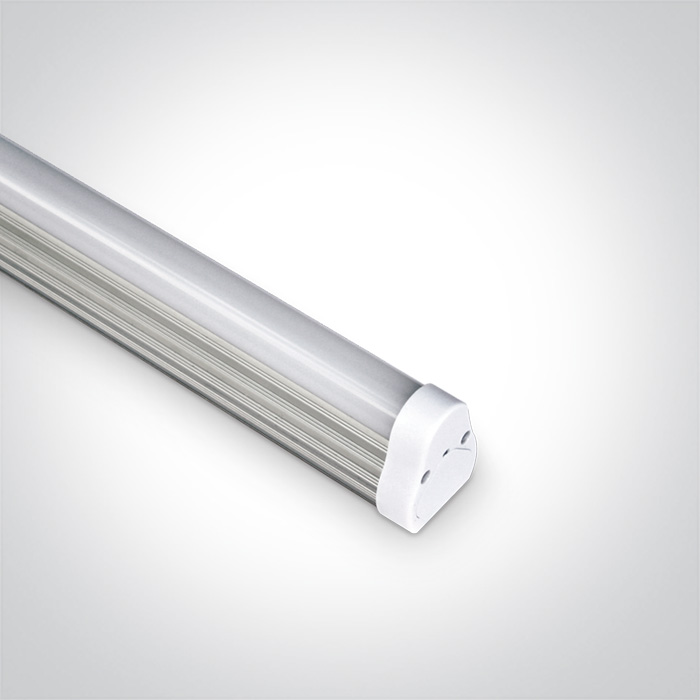

4W 230V Solid LED Strip, IP20.
Complete with non-dimmable LED driver.

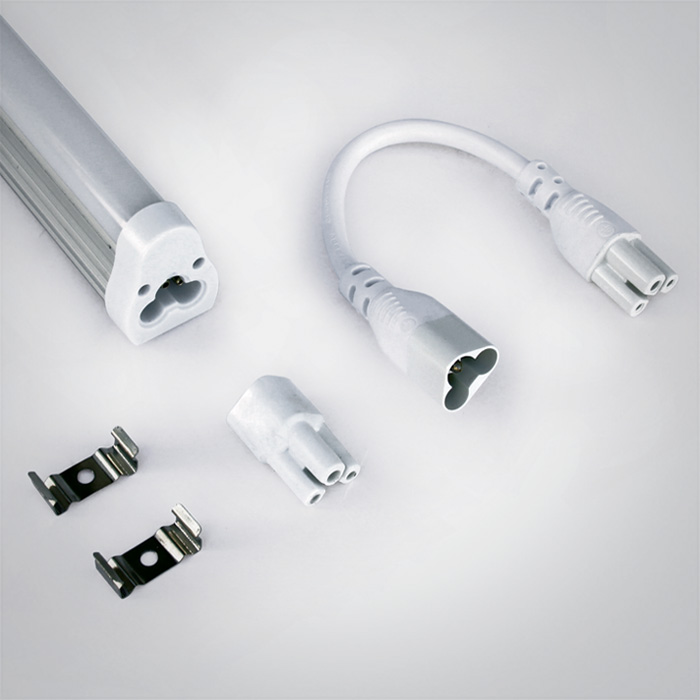

Supplied with 6cm corner cable, 50 cm power cable 1pc connector & 3 fixing clips.
Connect Maximum 5pcs at 110V & 10pcs at 230V
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Supplied with 6cm corner cable, 50 cm power cable 1pc connector & 3 fixing clips.
Connect Maximum 5pcs at 110V & 10pcs at 230V
Complies with standard EN60598-1 and any other specific standards.

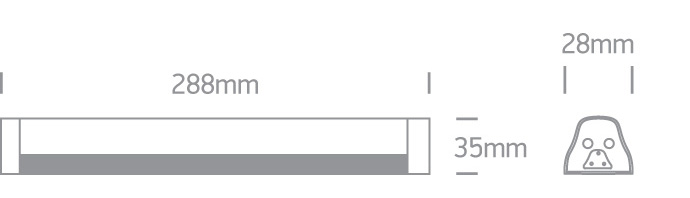

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The 230V Solid LED Strip Aluminium + PC
Order Code
38104L/W
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
280mm
Width
28mm
Height
35mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
4W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
4W
IP Rating
IP20
Light Source
LED built in
Fast Connector
Other
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4W
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
280lm
Light Efficiency
70lm/W
CRI
75
Illumination Diagram
Packing Info
Box Weight
0.276kg
Pcs/Carton
50
Barcode
5291889031307
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
