08 Strips & Profiles > The LED Shelf System Aluminium + PC
38105/W
5W LED Shelf system, IP20 .
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

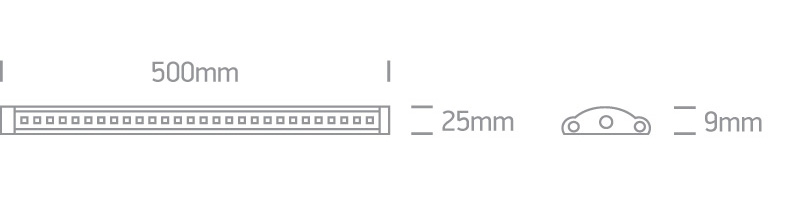

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The LED Shelf System Aluminium + PC
Order Code
38105/W
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
500mm
Width
25mm
Height
9mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3014
LED Brand
Epistar
Fast Connector
Other
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
375lm
Light Efficiency
75lm/W
CRI
80
Beam Angle
90°
Illumination Diagram
Packing Info
Box Length
50cm
Box Width
3cm
Box Height
3,5cm
Box Weight
0.186kg
Pcs/Carton
50
Barcode
5291889038795
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
