18 Bathroom > The Mirror LED Round Aluminium + PC
38120C/C
20W LED fitting ideal for installation above the bathroom
mirror, IP44.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

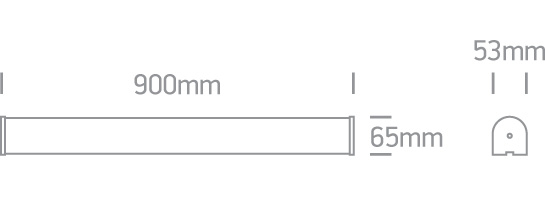

Dimensions
Downloads
Physical Specification
Item Group
18 Bathroom
Family
The Mirror LED Round Aluminium + PC
Order Code
38120C/C
Colour
Chrome
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
900mm
Width
65mm
Height
53mm
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
38V
Power (Watts)
19W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
LED Brand
ETI
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
15-21,5W
Power Factor
0,9
Constant Current
Yes
500mA
30-43V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
1700lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
92cm
Box Width
6cm
Box Height
7,5cm
Box Weight
0.930kg
Pcs/Carton
10
Barcode
5291889046257
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
