    42006BX
    200W 48V DC constant voltage driver for magnetic track, IP20.

    Complies with standard EN61347-1 and any other specific standards. Suitable for MINI,MIDI and MAXI magnetic tracks.
    Indoor
    IP
    CE

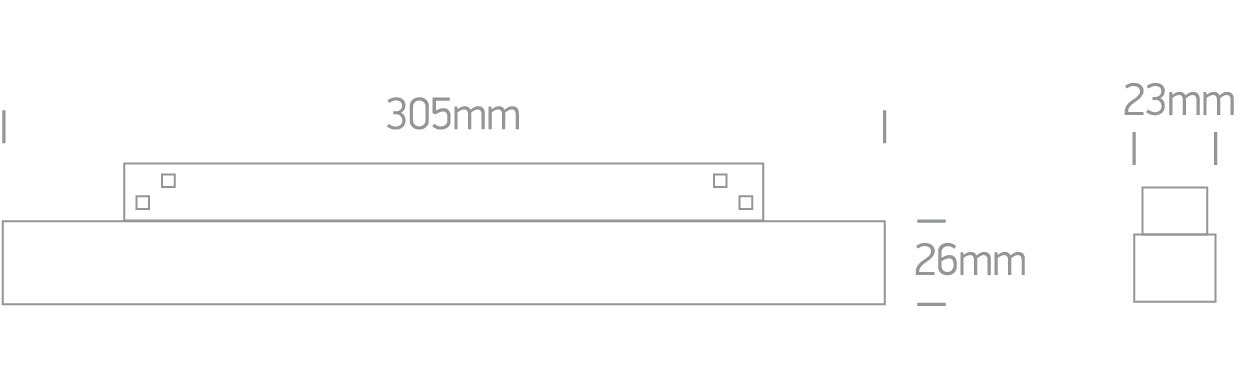

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    10 Tracks & Magnetic
    Family
    Magnetic Profiles Accessories
    Order Code
    42006BX
    Material
    Plastic
    Shape
    Rectangular
    Length
    305mm
    Width
    23mm
    Height
    26mm (without adaptor)
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    200W
    Power Factor
    0,9
    Constant Voltage
    Yes
    48 V
    Yes
    IP Rating
    IP20
    Safety Class
    Housing Material
    Metal
    Output Terminal
    Connector

    Packing Info

    +
    Box Weight
    0.615kg
    Pcs/Carton
    20
    Barcode
    5291889074007
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    22
