10 Tracks & Magnetic > Magnetic Linear Lights

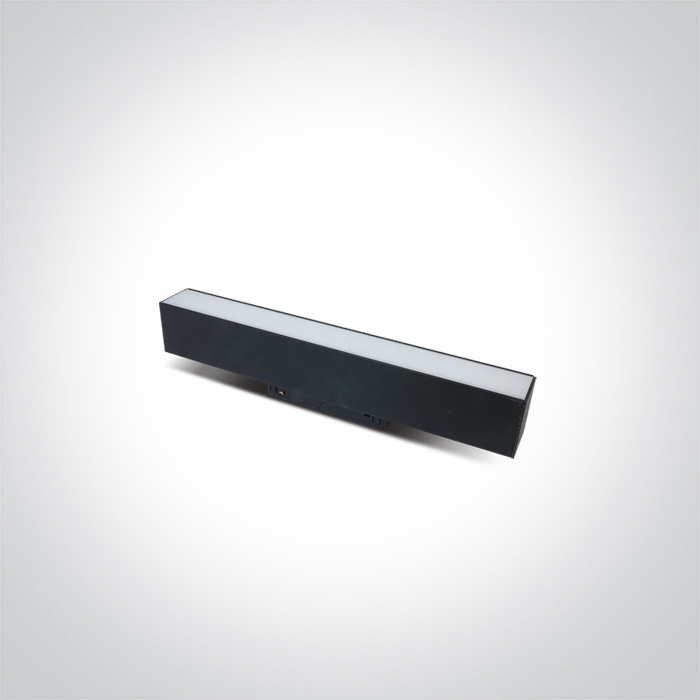

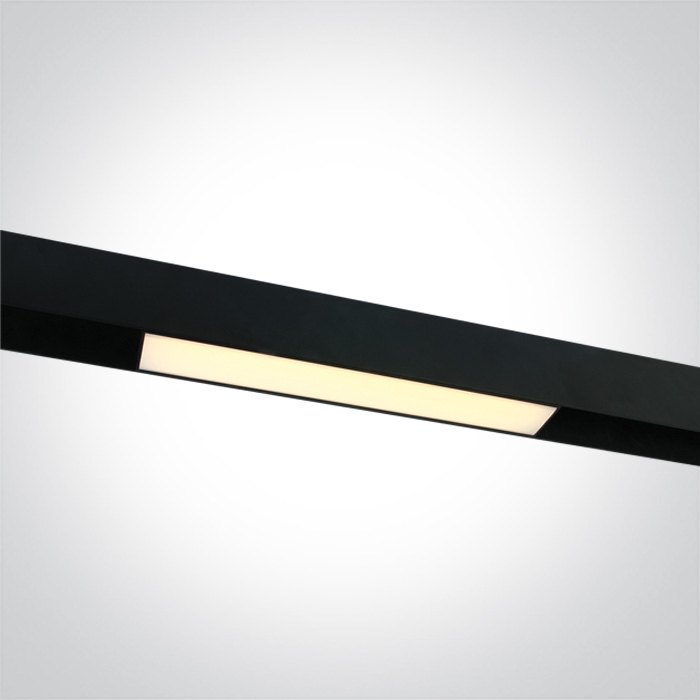

42100A/B/W

LED Linear magnetic track light, ideal for shops and showrooms.

Suitable for MAXI magnetic tracks.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
Wall
IP
CRI
Beam Angle
CE

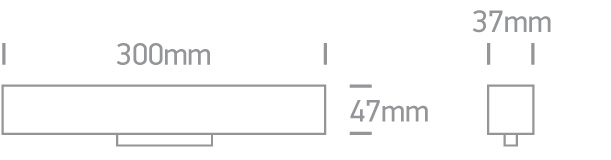

Dimensions
Downloads

Physical Specification

+
Item Group
10 Tracks & Magnetic
Family
Magnetic Linear Lights
Order Code
42100A/B/W
Colour
Black
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
300mm
Width
37mm
Height
47mm
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
LED Number
60

Illumination Data

+
Colour Temperature
3000K
Lumen Output
1200lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
120º
Illumination Diagram

Packing Info

+
Box Weight
0.475kg
Pcs/Carton
40
Barcode
5291889072126
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
