10 Tracks & Magnetic > Magnetic Linear Lights
42100B/B/W

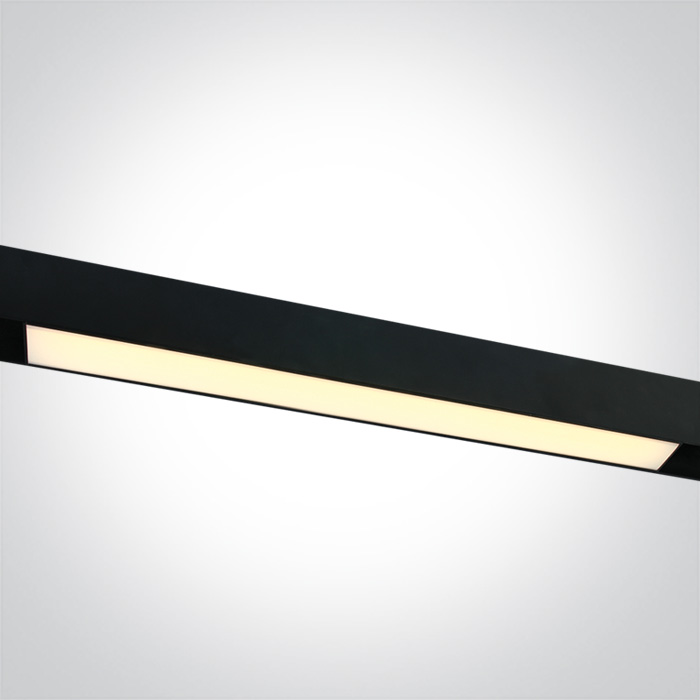

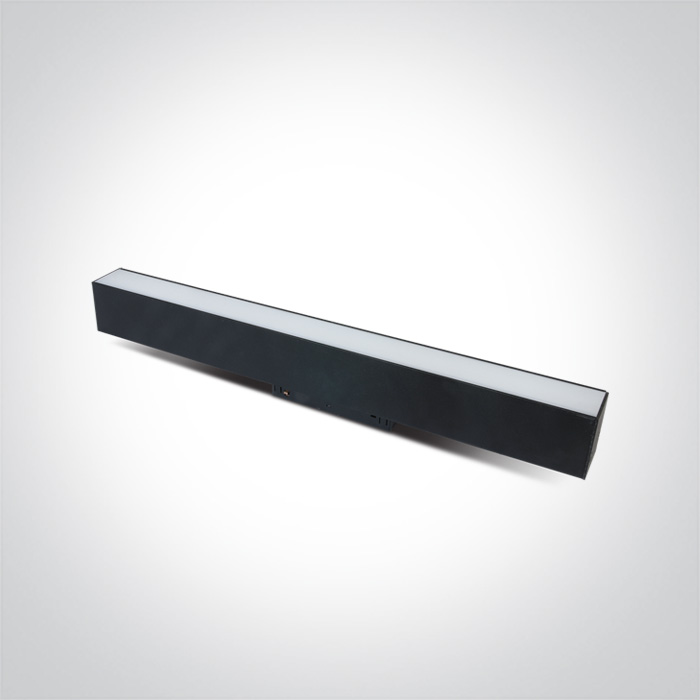

LED Linear magnetic track light, ideal for shops and showrooms.
Suitable for MAXI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MAXI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
10 Tracks & Magnetic
Family
Magnetic Linear Lights
Order Code
42100B/B/W
Colour
Black
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
600mm
Width
37mm
Height
47mm
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
25W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
LED Number
120
Illumination Data
Colour Temperature
3000K
Lumen Output
2000lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
120º
Illumination Diagram
Packing Info
Box Weight
0.815kg
Pcs/Carton
20
Barcode
5291889072300
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
