10 Tracks & Magnetic > Magnetic Adjustable Linear Spots

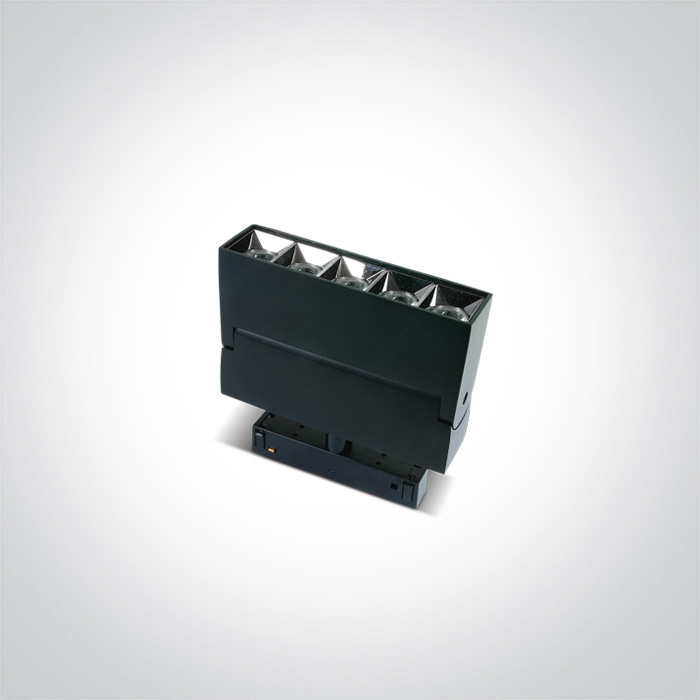

42106A/B/W

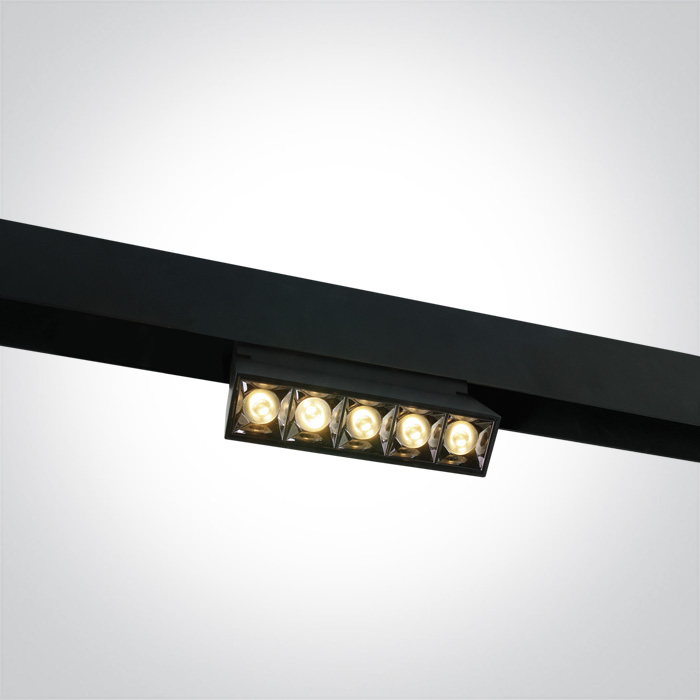

Adjustable LED Linear magnetic track light, ideal for shops and showrooms.
Suitable for MAXI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MAXI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
10 Tracks & Magnetic
Family
Magnetic Adjustable Linear Spots
Order Code
42106A/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
135mm
Width
34mm
Height
95mm
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
LED Number
5
Illumination Data
Colour Temperature
3000K
Lumen Output
960lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38º
Illumination Diagram
Packing Info
Box Weight
0.493kg
Pcs/Carton
30
Barcode
5291889072171
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
