10 Tracks & Magnetic > Magnetic Ball Lights
.jpg)
42134/BBS/W

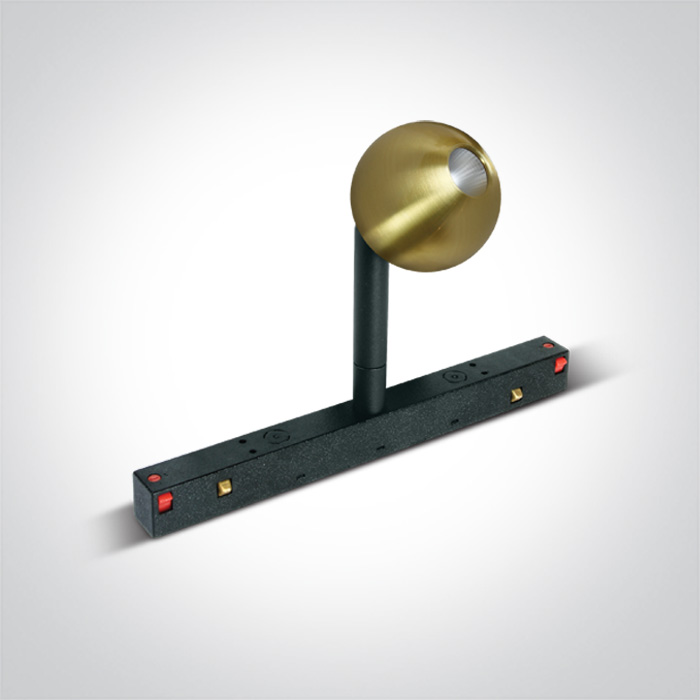

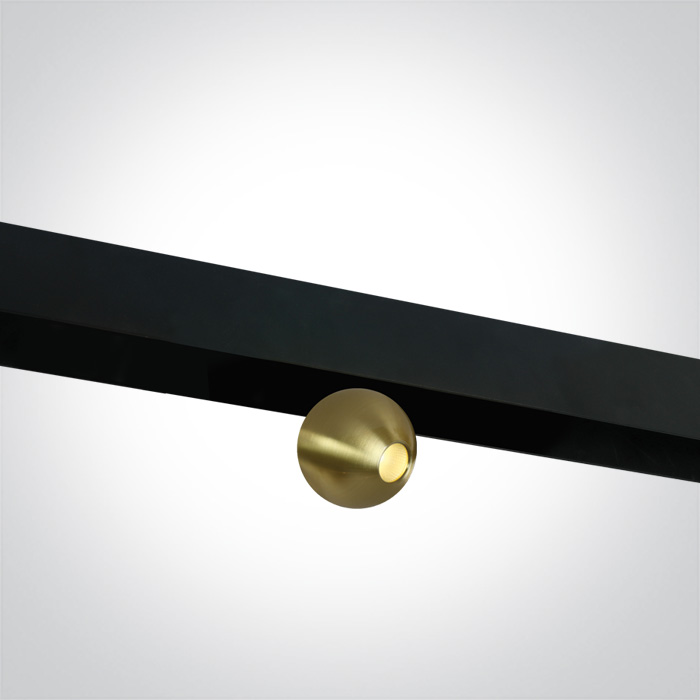

Track spot for magnetic track, ideal for shops and showrooms.
Suitable for MINI, MIDI and MAXI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MINI, MIDI and MAXI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
10 Tracks & Magnetic
Family
Magnetic Ball Lights
Order Code
42134/BBS/W
Colour
Brushed Brass
Material
Aluminium
Shape
Circular
Height
80mm
Diameter
54mm
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Osram
LED Number
1
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
36º
Illumination Diagram
Packing Info
Box Weight
0.356kg
Pcs/Carton
30
Barcode
5291889074779
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
