01 Recessed Spots Fixed > The Asymmetric Chill Out Range Square
50105MA/W/W

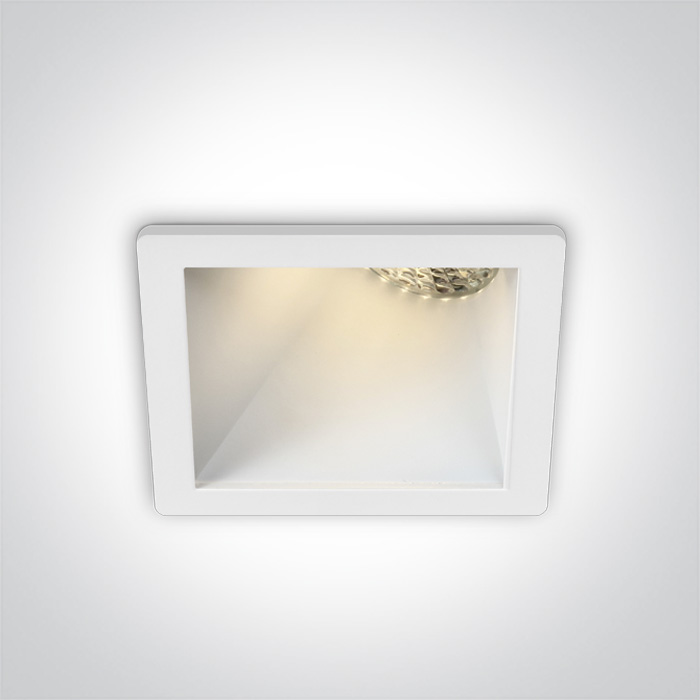

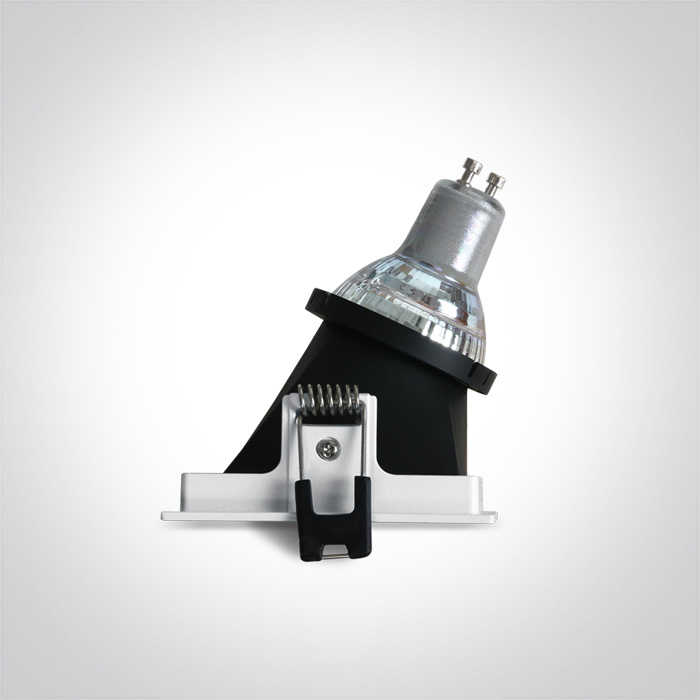

White Body White Reflector Assymetrical Dark Light Recessed MR16 spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

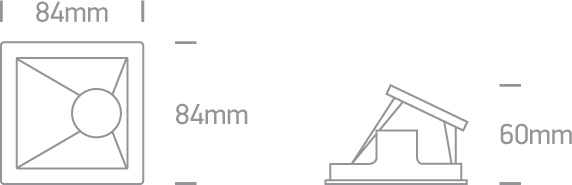

Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Asymmetric Chill Out Range Square
Order Code
50105MA/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
84mm
Width
84mm
Height
45mm
Cutout Hole Width
76mm
Cutout Hole Height
76mm
Recessed Ceiling
Yes
Depth Required
150mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10cm
Box Width
10cm
Box Height
10cm
Box Weight
0.206kg
Pcs/Carton
50
Barcode
5291889054719
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
