02 Recessed Spots Fixed LED > Medium Shop Square Boxes
50107B/W/W

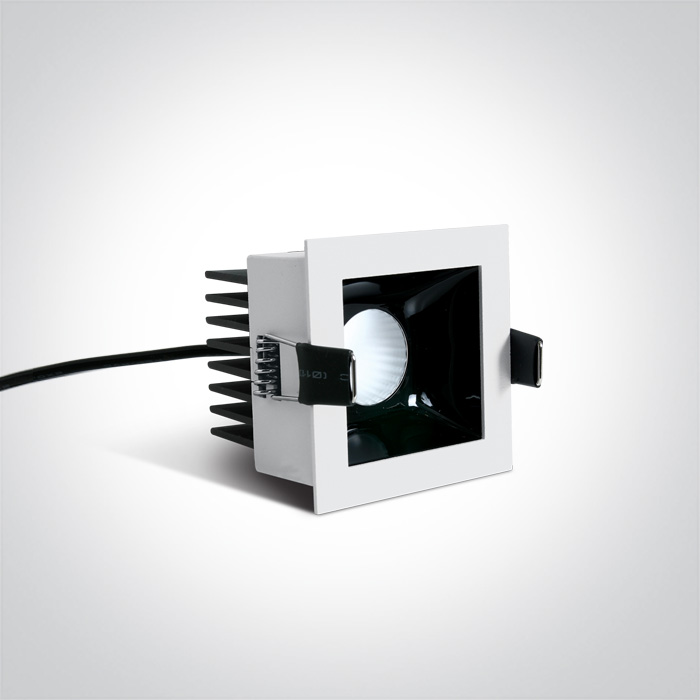

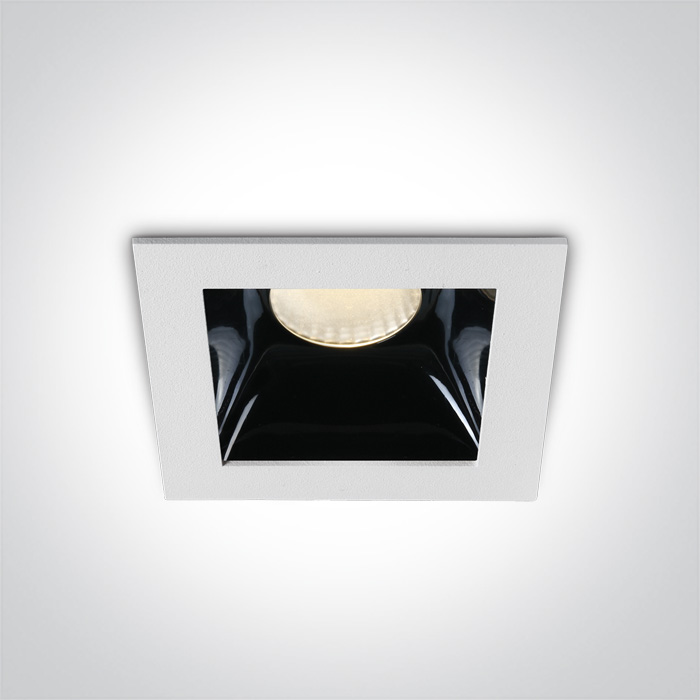

Recessed spot with COB LED. Ideal for shops and hotels.
Requires 350mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.

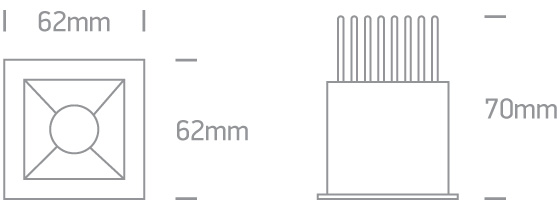

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Medium Shop Square Boxes
Order Code
50107B/W/W
Colour
White
Material
Aluminium + Steel
Shape
Rectangular
Length
62mm
Width
62mm
Height
70mm
Cutout Hole Width
57mm
Cutout Hole Height
57mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
84,61
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
0.253kg
Pcs/Carton
60
Barcode
5291889055259
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
