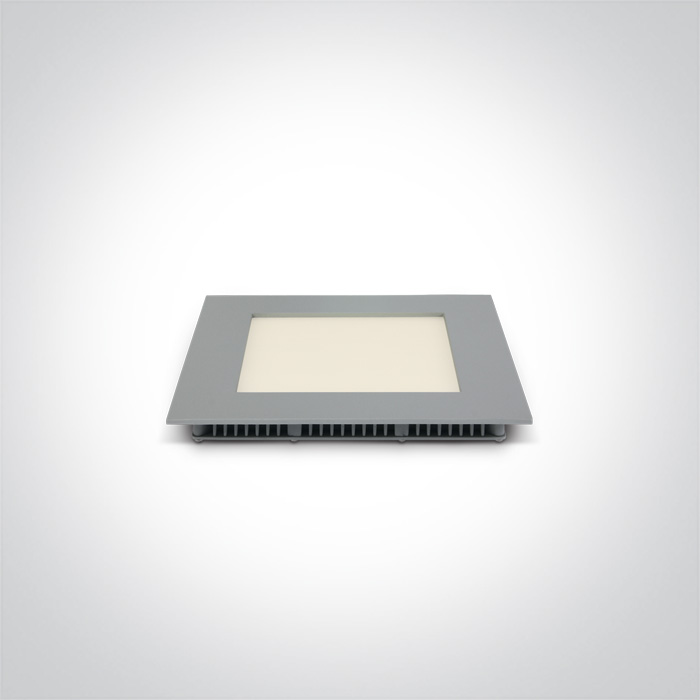

06 Downlights Fixed LED > The 8-16W Square Recessed Panels Die cast
50116FA/G/W
16W slim downlight LED, IP40, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 350mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 350mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

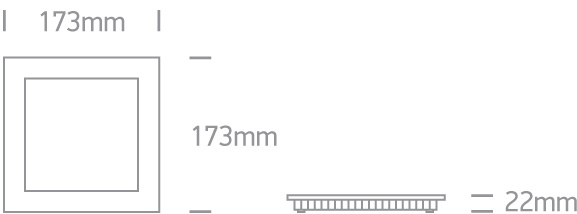

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The 8-16W Square Recessed Panels Die cast
Order Code
50116FA/G/W
Colour
Grey
Material
Die Cast
Diffuser Material
Acrylic
Shape
Rectangular
Length
173mm
Width
173mm
Height
22mm
Cutout Hole Width
155mm
Cutout Hole Height
155mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
42V
Safety Class
Power (Watts)
14,7W
IP Rating
IP40
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
84

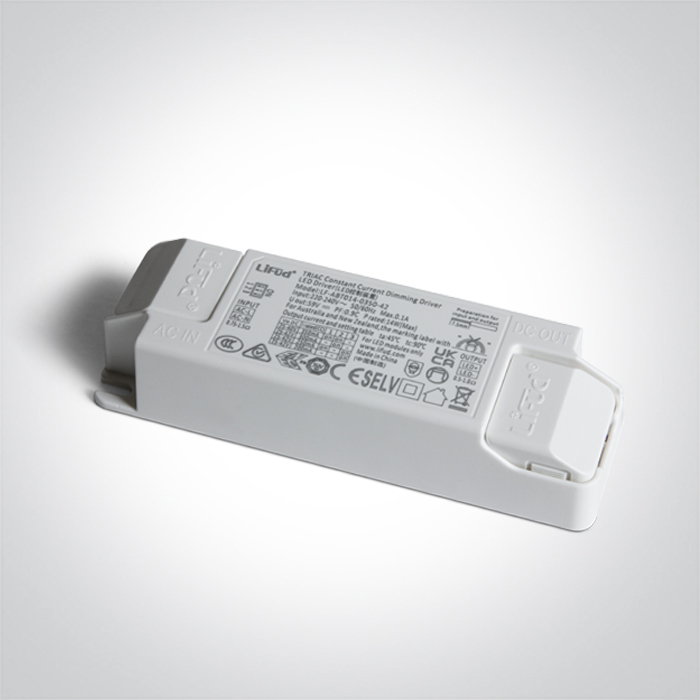

Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9,5-14,7W
Power Factor
0,6
Constant Current
Yes
350mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
960lm
Light Efficiency
60lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
23,6cm
Box Width
18cm
Box Height
18cm
Box Weight
0.440kg
Pcs/Carton
30
Barcode
5291889044277
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000 hours
Wee Directive
Yes
Year in which the CE mark was affixed
16
