06 Downlights Fixed LED > The Rectangular Panels 1200x300mm
50140BRU/W/V
30x120 adjustable CCT recessed backlit LED panel with microprismatic diffuser for T-rail false ceilings.
Uniform lighting, ideal for commercial applications.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.
Uniform lighting, ideal for commercial applications.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The Rectangular Panels 1200x300mm
Order Code
50140BRU/W/V
Colour
White
Material
Aluminium + Steel
Shape
Rectangular
Length
1195mm
Width
295mm
Height
30mm
Recessed T-Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
38V
Safety Class
Power (Watts)
38W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark

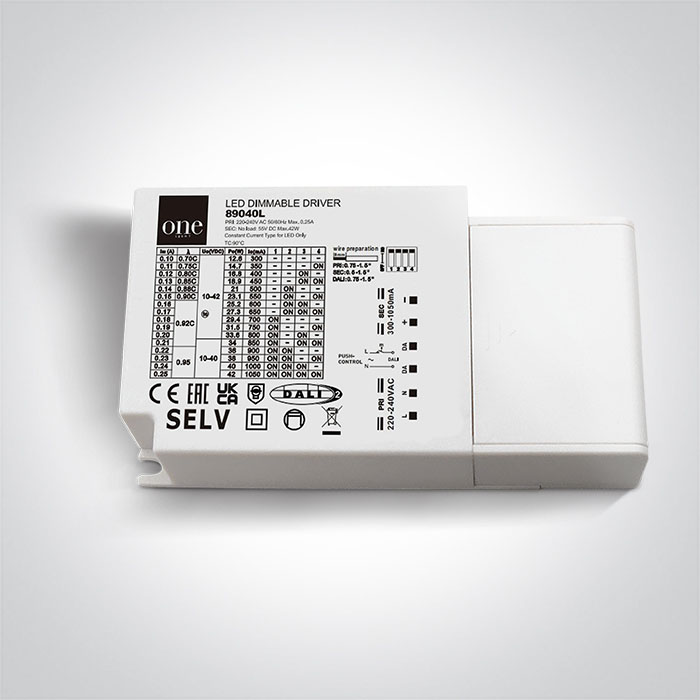

Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
33-40W
Power Factor
0,9
Constant Current
Yes
1000mA
33-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K-4000K-5700K
Lumen Output
3600lm-4000lm-3800lm
Light Efficiency
90lm/W - 100lm/W - 95Lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.300kg
Pcs/Carton
4
Barcode
5291889077169
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
36000hours
Wee Directive
Yes
Year in which the CE mark was affixed
23
