02 Recessed Spots Fixed LED > Mini Shop Square Boxes Die cast
50302B/B/W

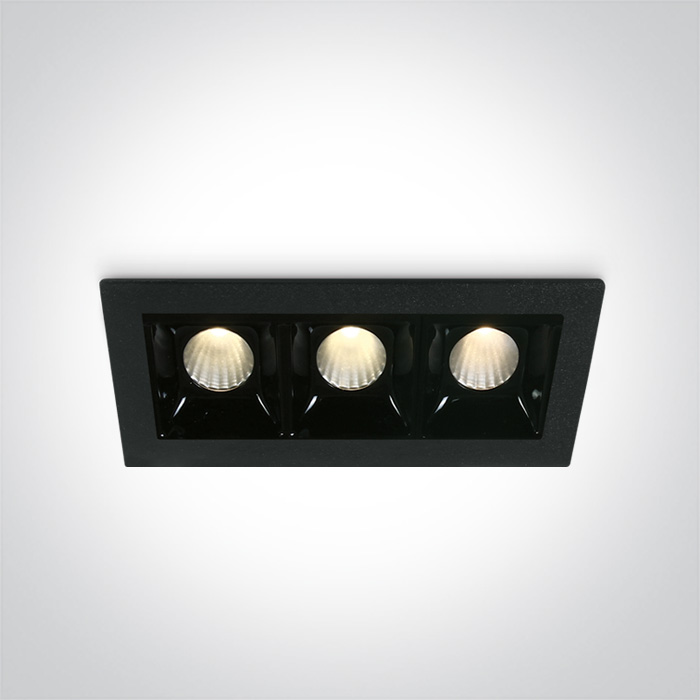

3x2W LED recessed spot, IP20.
Use 89008A driver.
Complies with standard EN60598-1 and any other specific standards.
Use 89008A driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Mini Shop Square Boxes Die cast
Order Code
50302B/B/W
Colour
Black
Material
Die Cast
Shape
Rectangular
Length
106mm
Width
45mm
Height
47mm
Cutout Hole Width
97mm
Cutout Hole Height
36mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
3x2W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
3
Cable Length
30cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
3x160lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
30°
Illumination Diagram
Packing Info
Box Weight
0.194kg
Pcs/Carton
50
Barcode
5291889061762
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
