02 Recessed Spots Fixed LED >
50401L/D/35
4x1W LED recessed spot IP20.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

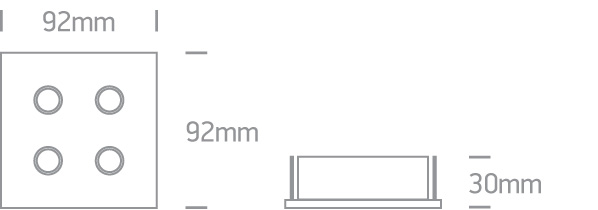

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Order Code
50401L/D/35
Colour
Aluminium
Material
Natural Aluminium
Shape
Rectangular
Length
92mm
Width
92mm
Height
30mm
Cutout Hole Width
80mm
Cutout Hole Height
80mm
Recessed Ceiling
Yes
Depth Required
40mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
4x1W
IP Rating
IP20
Light Source
LED built in
LED Number
4
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
6000K
Lumen Output
240lm
Light Efficiency
60lm/W
Beam Angle
35°
Illumination Diagram
Packing Info
Box Length
11cm
Box Width
11cm
Box Height
5cm
Box Weight
0.186kg
Pcs/Carton
50
Barcode
5291889019350
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
