02 Recessed Spots Fixed LED > Dark Light Tubes
50406C/B/W

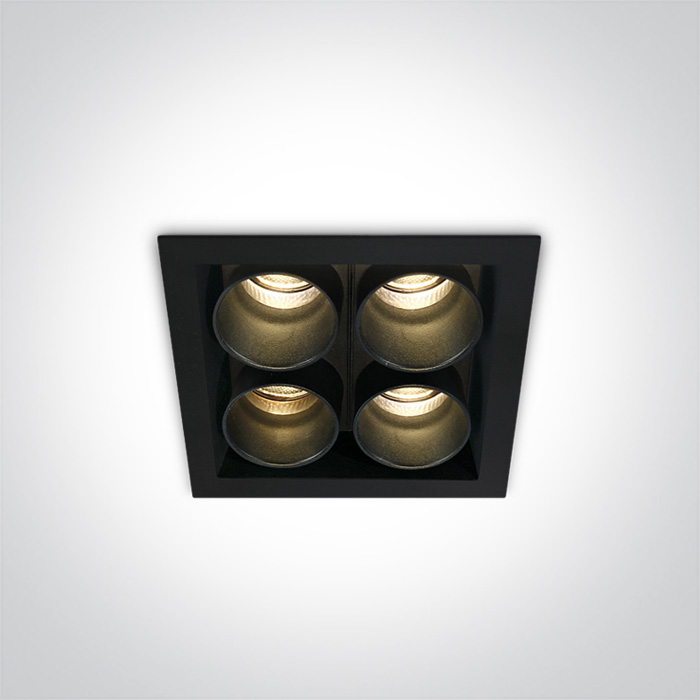

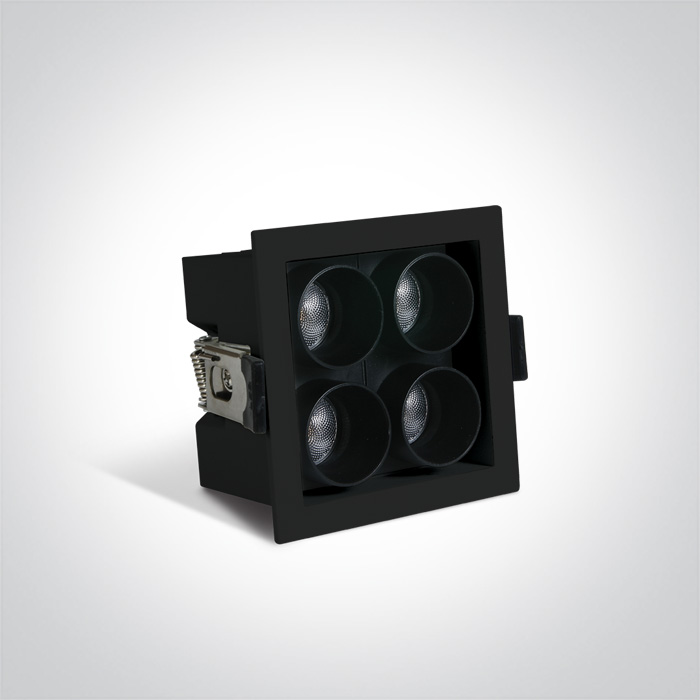

10W SMD LED recessed spot IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Dark Light Tubes
Order Code
50406C/B/W
Colour
Black
Material
Die Cast
Shape
Rectangular
Length
77mm
Width
77mm
Height
51mm
Cutout Hole Width
68mm
Cutout Hole Height
68mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
12V
Safety Class
Power (Watts)
8,4W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Cree
LED Number
4
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6,3-11,2W
Power Factor
0,5
Constant Current
Yes
700mA
9-16V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
75°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
800lm
Light Efficiency
80lm/W
CRI
85
Beam Angle
25°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.315kg
Pcs/Carton
30
Barcode
5291889067023
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
