02 Recessed Spots Fixed LED > Dark Light Tubes
50906C/W/W

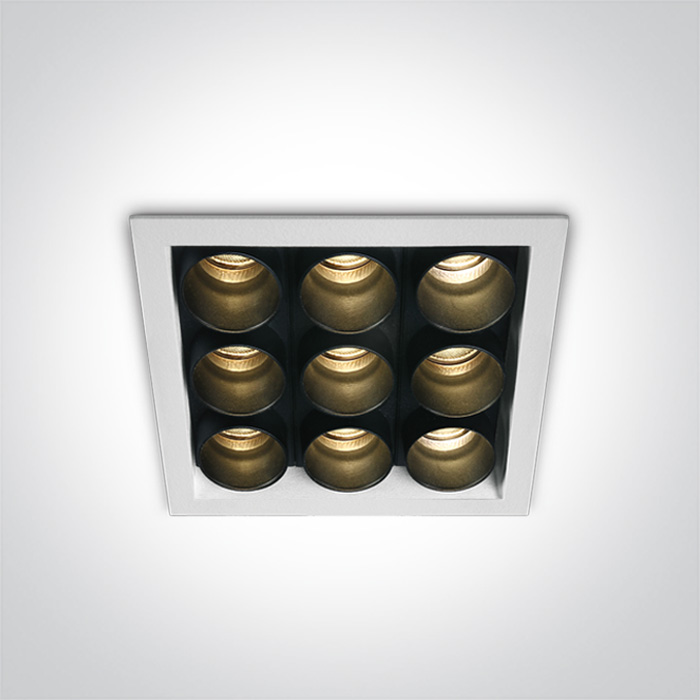

22W SMD LED recessed spot IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

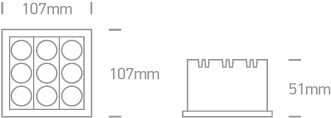

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Dark Light Tubes
Order Code
50906C/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
107mm
Width
107mm
Height
51mm
Cutout Hole Width
96mm
Cutout Hole Height
96mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
22W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
30V
Safety Class
Power (Watts)
21W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Cree
LED Number
9
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
17,5-23,8W
Power Factor
0,92
Constant Current
Yes
700mA
25-34V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1760lm
Light Efficiency
80lm/W
CRI
85
Beam Angle
25°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.555kg
Pcs/Carton
18
Barcode
5291889067054
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
