02 Recessed Spots Fixed LED > The Trimless Mirror Range Aluminium
51024H/W/W
24W Adjustable Dark light recessed spot, IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

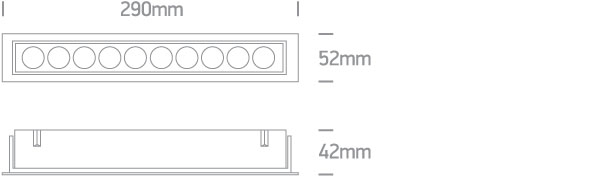

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Trimless Mirror Range Aluminium
Order Code
51024H/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
290mm
Width
52mm
Height
42mm
Cutout Hole Width
280mm
Cutout Hole Height
43mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
24W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
32V
Safety Class
Power (Watts)
22,4W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
LED Number
10
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
16,8-29,4W
Power Factor
0,95
Constant Current
Yes
700mA
24-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20°C…+45°C
Operating Temp
85°C
Illumination Data
Colour Temperature
3000K
Lumen Output
1680lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.655kg
Pcs/Carton
20
Barcode
5291889074946
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
