03 Recessed Spots Adjustable > The Square MR16
51105TG/W

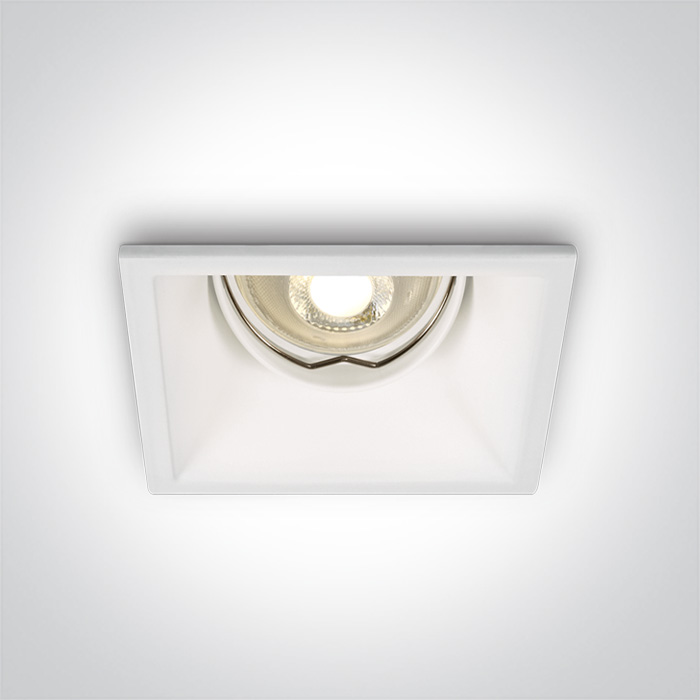

Dark Light Recessed Square adjustable MR16 spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Square MR16
Order Code
51105TG/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
90mm
Width
90mm
Height
43mm
Cutout Hole Width
80mm
Cutout Hole Height
80mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10,5cm
Box Width
10,5cm
Box Height
6cm
Box Weight
0.182kg
Pcs/Carton
50
Barcode
5291889040026
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
14
