05 Downlights > Adjustable R111 Shop Range
51310N/W

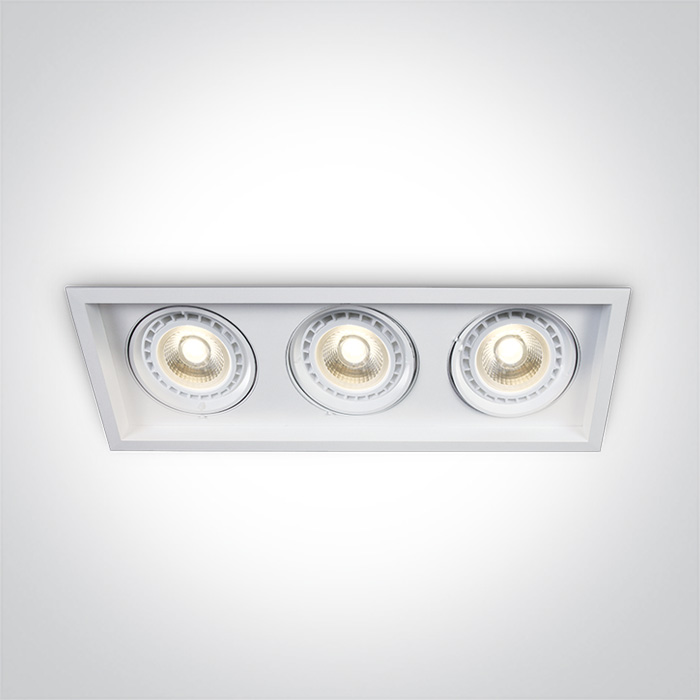

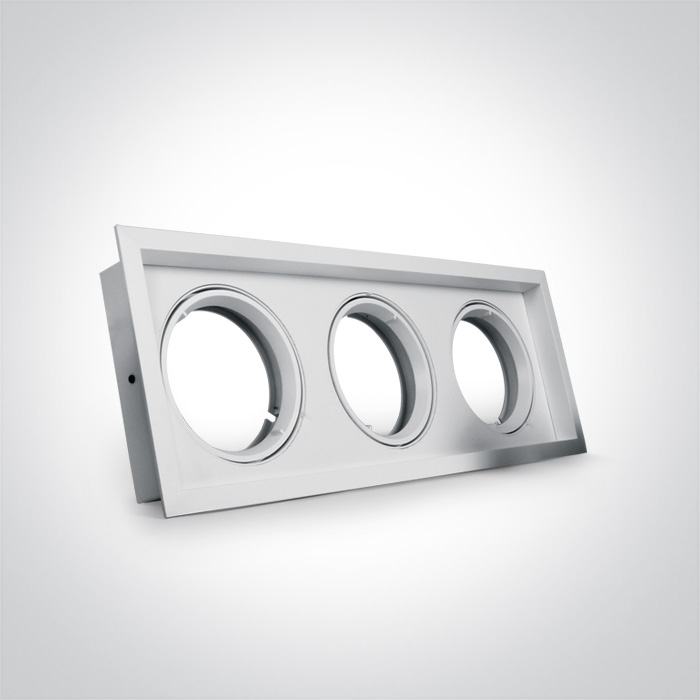

Recessed adjustable R111 downlight shop range with GU10 lampholder.

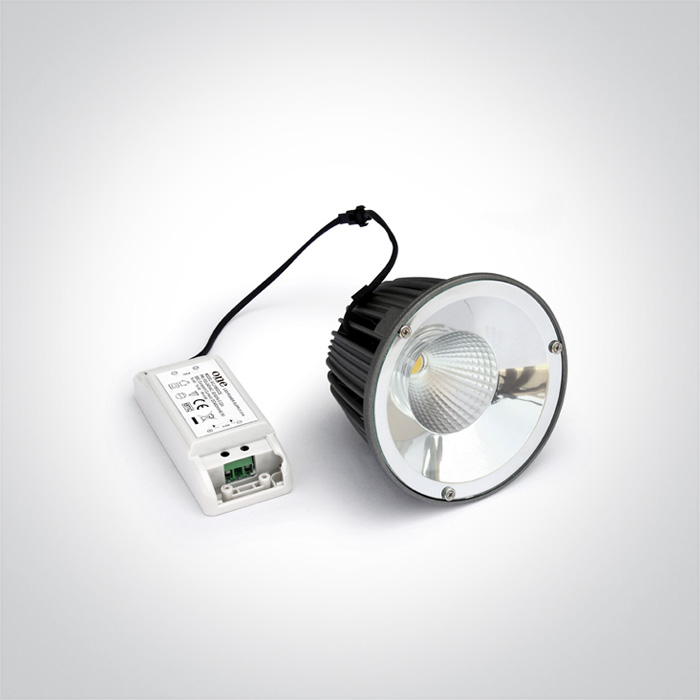

Suitable for LED module
Complies with standard EN60598-1 and any other specific standards.
Suitable for LED module
Complies with standard EN60598-1 and any other specific standards.

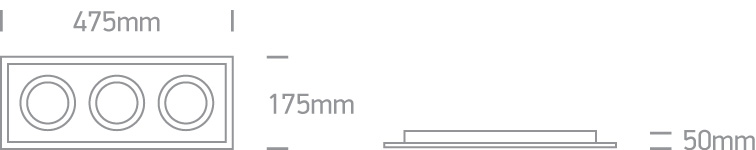

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights
Family
Adjustable R111 Shop Range
Order Code
51310N/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
475mm
Width
175mm
Height
50mm
Cutout Hole Width
460mm
Cutout Hole Height
165mm
Recessed Ceiling
Yes
Depth Required
160mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V AC/DC
Safety Class
Power (Watts)
3x75W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
3
LED Number
0
Cable Length
30cm
Illumination Data
Illumination Diagram
Packing Info
Box Length
20cm
Box Width
6cm
Box Height
48,5cm
Box Weight
1.250kg
Pcs/Carton
10
Barcode
5291889039099
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
14
