04 Recessed Spots Adjustable LED > The Mirror Adjustable Boxes
51506B/B/W
20W COB LED adjustable recessed Spot with dark chrome reflector.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
![Indoor](Assets/img/dropdowns/indoor_outdoor/INDOOR.png)
![Ceiling](Assets/img/dropdowns/mounting_type/CEILING.png)
![IP](Assets/img/dropdowns/ip/1.png)
![CRI](Assets/img/dropdowns/cri/90.png)
![Adjustable](Assets/img/dropdowns/adjustable/adjustable2.png)
![Beam Angle](Assets/img/dropdowns/beam_angle/09.png)
![CE](Assets/img/dropdowns/ce/CE.png)

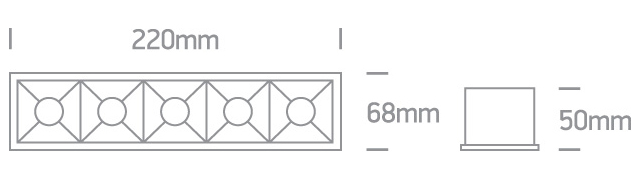

Dimensions
![](/Assets/materials/files/diagrams/51506B-DIAGRAM.jpg)
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Mirror Adjustable Boxes
Order Code
51506B/B/W
Colour
Black
Material
Die Cast
Shape
Rectangular
Length
220mm
Width
68mm
Height
50mm
Cutout Hole Width
212mm
Cutout Hole Height
55mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
![](Assets/img/dropdowns/class/CLASS2.png)
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
![](Assets/img/dropdowns/f_mark/FMARK1.png)
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
35,7V
Safety Class
![](Assets/img/dropdowns/class/CLASS3.png)
Power (Watts)
17,85W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
5
F Mark
![](Assets/img/dropdowns/f_mark/FMARK1.png)
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-20W
Power Factor
0,9
Constant Current
Yes
500mA
25-40V
IP Rating
IP20
Safety Class
![](Assets/img/dropdowns/class/CLASS2.png)
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
![](Assets/img/dropdowns/beam_angle/09.png)
Packing Info
Box Weight
0.630kg
Pcs/Carton
30
Barcode
5291889064169
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
